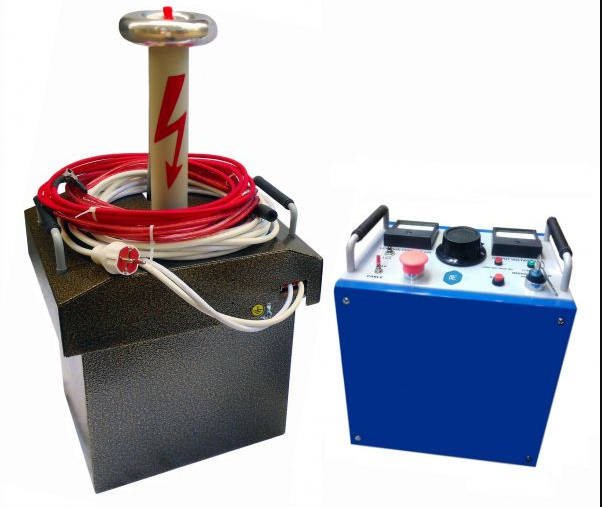

DTE 70/50 高压测试设备 (AC:50kV, DC:70kV)

Output voltage type: DC AC
Maximum output voltage, kV 70 50
Maximum output current, mA 15 45
Output voltage measuring range, kV 0.5-70 0.5-50
Measuring range of output current, mA 0-1; 0-15 no measurements
Overcurrent protection, mA, max. 16 46
Limit of overcurrent protection unit HV, A 10 10
Supply voltage 220V +/- 22V; 50 (60) Hz
Error of measuring current and voltage,% 3 (full reading)
Weight control unit, kg 11
Unit weight high voltage, kg 44
Controller unit size, mm 315x220x365
High voltage unit size, mm 360x285x670
