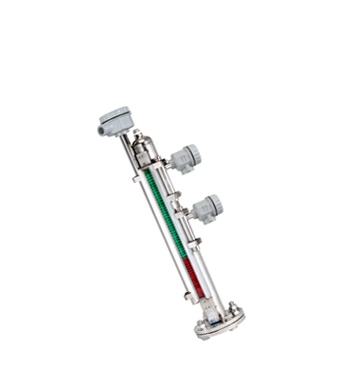

DHS DLG-100F-T-2S 磁瓣式液位计 (500mm~6000mm)

Media: Only Liquid

Wiring: 2 wire (input/output the same)

Range:  Minimum-500mm(19.68inch)

Maximum-6000mm(236.22inch)

Impedance: 450Ω (When using DC 24V)

Input Voltage DC 24V

Output Signal : DC 4~20mA Connect Output (only alarm)

Temperature : -10˚C ~120˚C

Pressure : Max. 100KgF/Cm2

Material:

Head Housing-Aluminum

Stem-SUS304 (Option-SUS316)

Socket & Flange-SUS304 (Option-SUS316)

Float-Titanium

Stopper-SUS304 (Option-SUS316)
