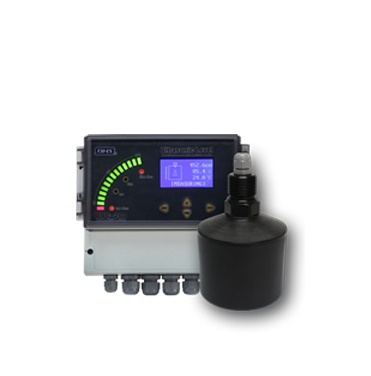

DHS DU-12-D 超音水平传感器 (500 ~ 12,000mm)

Range : 500 ~ 12,000mm

Dead band : 500mm

Accuracy : Full Scale 0.25%

Resolution : 1mm

Temp. Comp. : Automatic in full scale

Beam width : 11˚

Current consumption : Max 100mA

Supply voltage : AC 220V 60Hz

Output signal : CURRENT DC 4~20mA ( DC 20~4mA), RS485 (Modbus RTU),  Relay Output 4ea

Process Temp. : -20℃ ~ 60℃

Process pressure : 0.7~2.5Kgf/Cm2

Mounting : 1.0 inch

Material : Unit - ABS

Flange - PVC(OPTION)

Probe - PVDF Kynar 720

Protect rating : IP65

Detail

Datasheet
