-Tension capacities: 10,000lb/45kN/4500kg
-Wire rope sizes and types:
3/16" to 1” possible
½" 8 x 19 Included
9/16" 8 x 19 Included
5/8" 8 x 19 Included
Up to 5 other size and wire types may be added.
-Accuracy: +3% of full scale.
-Calibrated to specific wire rope size and type; ± 5% with same wire rope diameter
as calibrated but different wire rope type.
-Number of calibrations:3 factory installed wire rope sizes:
½" 8 x 19
9/16" 8 x 19
5/8" 8 x 19
Up to 5 additional wire rope types can be
-Loading error: Cable elongation of only 0.08" (2mm)
-Display: Dot graphic, backlit LCD supports full text and 1.0" high digits
-Sheave range:Supplied with one set of sheaves (¼" to ¾" in range). Other
selections may be ordered as necessary.
-Suitable for continued outdoor use.
-Operating range: -4°F to 140°F (-20°C to 60°C)
-Tension units of measure: Pound-force, kilogram force, Newtons
-Resolution:Configurable for low, medium or high
-Recalibration:At user discretion.
-Common calibration period is 24 months but should be more frequent in heavy
use applications. Factory calibrations typically completed in 2 to 4 days. On site
calibration may be possible through your Dillon distributor.
Include: meter,arrying case., Three Factory Installed Calibrations (1/2", 9/16", 5/8" 8 x 19), Manual, first set of sheaves S

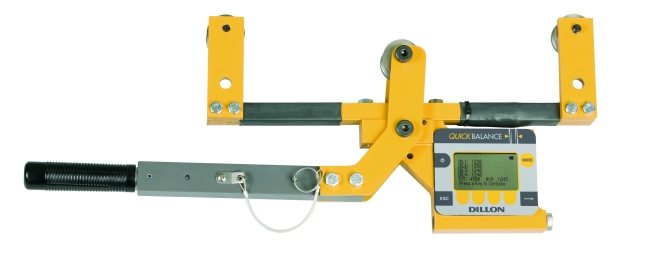

Quick Balance Tension Meter - Elevators/Lift Cars
|The Dillon Quick Balance quickly measures tension on lift traction cables or other cable sets, recording individual readings, averages and total readings. The Quick Balance clamps onto each wire rope and determines the force/load, or wire rope tension. The user friendly Quick Balance requires only one person to operate and is easily attached to measure the force rating and detaches in seconds. The Quick Balance quickly gets the total weight of the lift for any modifications that the customer has added. Each wire rope must bear an equal load to reduce wear and provide a smooth ride for the customers. Use the Dillon Quick Balance to ensure each elevator operates properly and wire rope tension is well balanced.|
