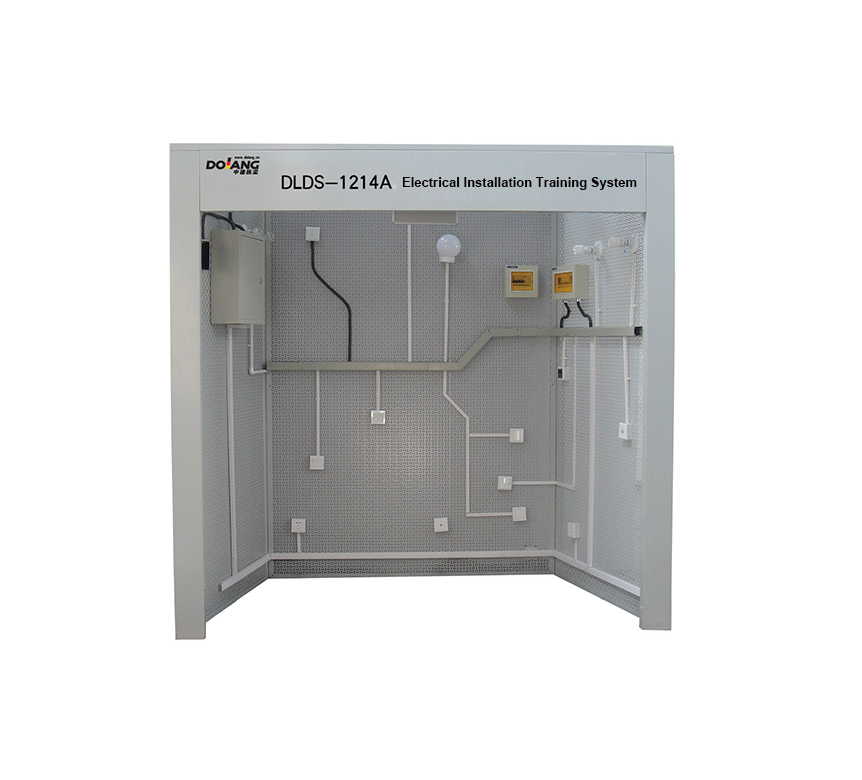

DLDS-1214A型电气安装实训装置

  • 制造商: DOLANG
    Model: DLDS-1214A
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




■ Technical Parameter

● Working power supply: three-phase, five- wire AC 380V±10%  50Hz/60Hz

● Working environment: temperature range -5~40℃   Relative humidity ≤ 85%(25℃ )   Altitude< 4000m

● General power control: With leakage protection,when leakage current reach 30mA, the protection system activate

● Total dimension: trapezoidal structure,the outer is built with patch board,the inner is composed of four panels

● L×W×H= 2550×1300×2500mm

● Main patch board dimension:

   Right panel (A) /1220  x 2440 x 18mm

   Left panel (B) /1220 x 2440 x 18mm

   Main panel  (C) /1800 x 2440 x 18mm

   Ceiling  (D)  Front 2426mm,Rear 1827mm,depth 1202mm

● Training equipment materials: steel plate spray; Steel plate thickness ≥ 1.5mm

● Maximum power consumption: ≤ 2.0KW


Details

Datasheet


Overview

● This Electrical Installation Training System is same with equipment of Worldskill competition.

● This electrical installation training System is equipment which is developed according to electrical installation of factory and room.

● Double layers structure,inner is simulation wall,outer is patch board wall.

● Use wood panel which makes students closer to the wall installation,patch board structure increases the flexibility of the equipment to facilitate training teaching after the competition.

● Room adopts trapezoidal opening structure,entirely consistent with World Skills Competition environment that enables students to complete the installation of different lines in this three-dimensional space,master the installation technology.

● To facilitate training and simulation test, the system uses patch board and double-layer  wooden structure. The patch board is reusable and easy to operate; it simulates the actual competition environment.
