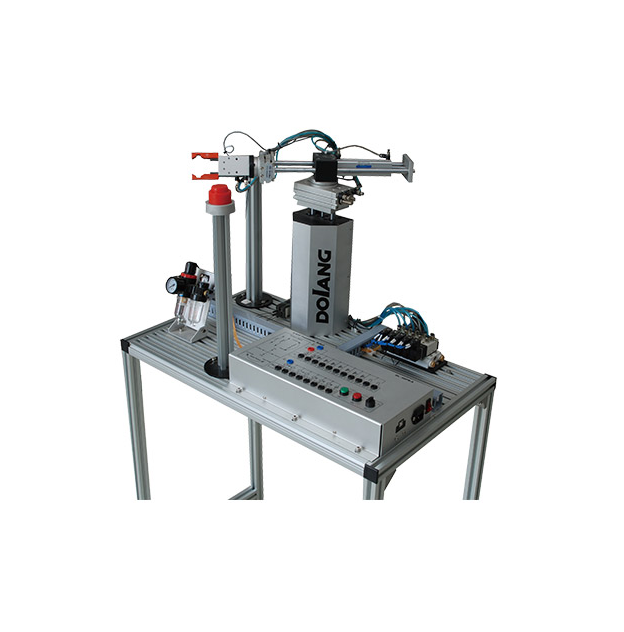

● The system consists of aluminum alloy training platform, the robot body and the operating portion.
● The system integrated pneumatic system, sensor system, electrical control circuit, microcontroller programming, GRAF language program, PC debugging.
● Three control methods: MCU or PC or PLC (without PLC). Change control methods by knob.
■ Technical Parameter
● Total dimension: 760×580×1366mm
● Input power: single-phase,three-wire AC
● Output power: DC 24V safety terminal output
● Capacity: < 200VA
● Computer, computer table
● PLC module
● PC software
● Air compressor
