● Total dimension:1200×750×1500mm
● Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz
● Capacity: < 200VA
● Computer, computer table
● PLC module

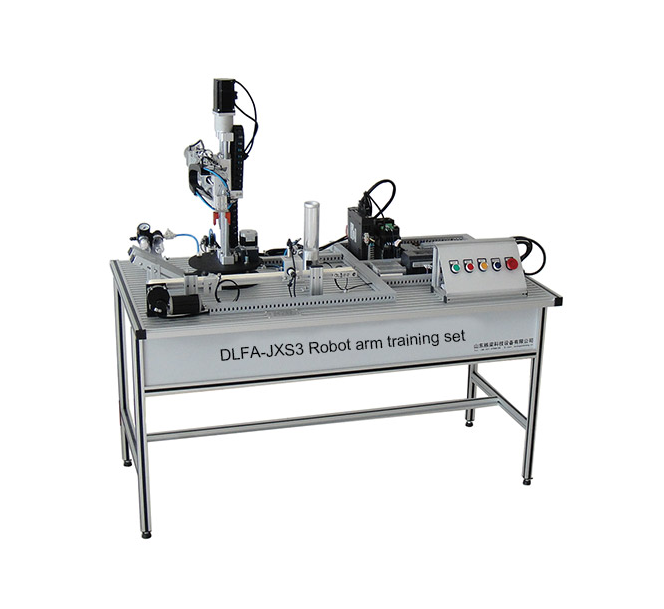

●This system consists of aluminum panel, manipulator ontology, distribution unit, belt conveyor, handling unit and electrical wiring area.
● This system in electrically aspect composed of PLC, servo motor, servo drives and other components, so it realizes a more accurate robot motion stroke.
● Control start, reset, stop and other functions of the device directly by operating the button, and really ensure the operators' safety.
● (PLC host computer can change according to user requirements)
