DOLANG DLGK-53B 平面式过程控制培训套装

  • 制造商: DOLANG
    Model: DLGK-53B
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




● Input power : single-phase,three-wire AC 220V±10% 50Hz/60Hz

● Operating power : DC24V 3A

● Environment temperature : -10℃~ 40℃

● Environment humidity : ≤ 90% (25℃)

● Total dimension ( process control unit ) : 2000×800×1900mm

● Training screen : 1800×700×1650mm

● Capacity : ≤ 2.5KVA

● Electric logic : NPN or PNP

● Occupancy PLC I / O points

  Switch input points : 2 way(DC24V)

  Switch output points : 2 way (DC24V)

  Analog input points : 2 way (Current type/voltage type)

  Analog output points : 2 way(Current type/voltage type)

■ Optional

● HMI

● CP5611 communication card

● Computer table


Details

Datasheet

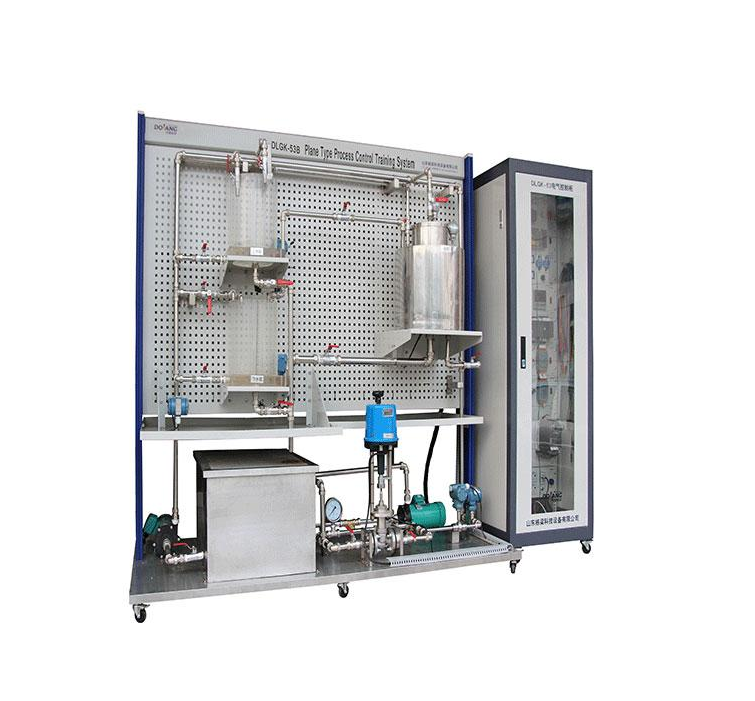

● DLGK-53B Plane Type Process Control Trainer, including control panel, computer table and process control unit.

● Control panel is the center of the whole control system, it composes of power module, device transfer module, frequency converter module, PLC module, smart instrumentation module and DAS DCS acquisition module, its role is to collect a varies of analog, switch signal to calculating, processing, and send the operational results to actuating equipment to control.
