● Total dimension: 1950×400×1800mm
● Input power: single-phase, three-wire AC 220V±5% 50Hz/60Hz
● Capacity: < 2KVA

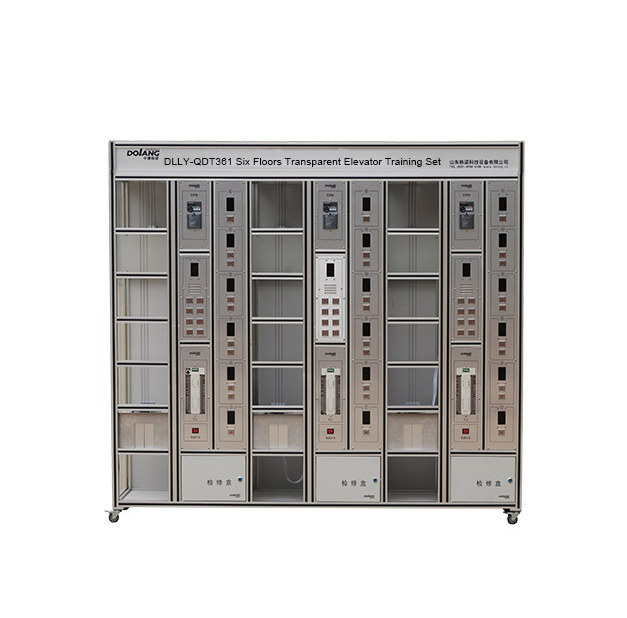

The DLLY-QDT361 Six Floors Transparent Elevator Trainer is designed according to most popular lift structure. The structure is composed of multiple elevators centralized arrangement, share the hall external call buttons, centralized scheduling and control of the elevator according to prescribed procedures. In addition to single elevator control function, it also has following features by adjusting the program: priority scheduling, regional priority control, started elevator priority, "long time wait" call control, special services, peak service, the main floor stop, energy-saving operation, Arrival sound alert. The complete system is composed of three six layers elevator. Each elevator has a PLC controller. The PLC exchange data by RS-485 series communication. The elevator outside call unified management. Close to the industrial building elevator control.
