● Input power: AC 380V±5% (three-phase, five-wire) 50Hz/60Hz
● Rated power: ≤ 1.5KW
● Frequency converter: RD740 0.4KW AC380V
● Total dimension: 2540×660×3000mm
● PLC : Mitsubishi FX3U-64MR
● Floors: Four
● Traction machine power: 95W/AC380V
● Computer desk
● Configuration software
● Wireless controls
● GSM control

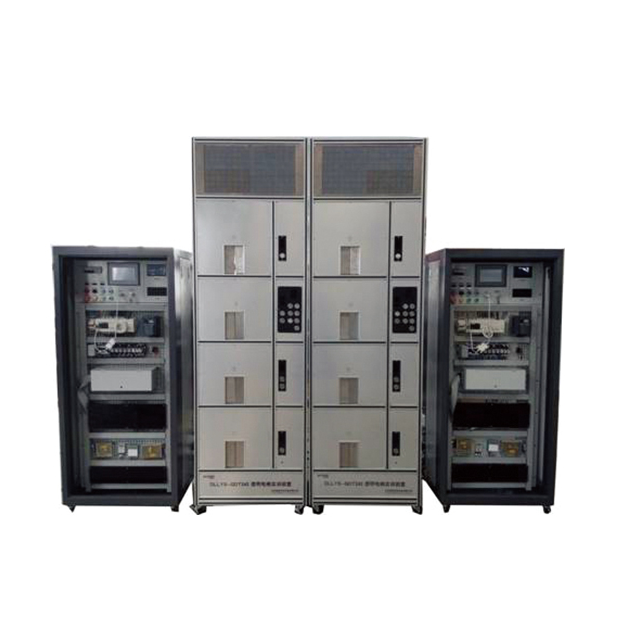

● Electrical control system of teaching elevator uses PLC and AC variable speed frequency control, greatly simplifying the composition of its hardware structure than the actual elevator, it has the functions like automatic leveling, automatic opening / shutting doors, forward in response to the call signal inside and outside the cabin, fire control, elevator safe operation protection and some special features like stop, emergency stop, maintenance, slow uprising and slow down.
● We can get the position detection of the elevator cabin and the elevator floor signal from the rotary encoder which is mounted on the cabin roof and connected to the traction wheel, to get rid of the complex line system which rely on the relay and contact switch, and optimize the circuit greatly and improve the system's reliability, meanwhile it is easy to repair.
● Software and hardware of simulation teaching elevator both adopt open architecture.
