DOLANG DLPLC-MP 混合过程培训系统

o Input power: single-phase, three-wire AC 220V±10% 50Hz/60Hz

o Operating power: DC 24V 3A

o Environment temperature: -10℃~ 40℃

o Environment humidity: ≤ 90% (25℃)

o Total dimension: 1400×600×1850mm

o Capacity: ≤1.5KVA

o Occupancy PLC I / O points

• Switch input points: 13 way

• Switch output points: 10 way

• Optional

o HMI

o Computer table

Detail

Datasheet

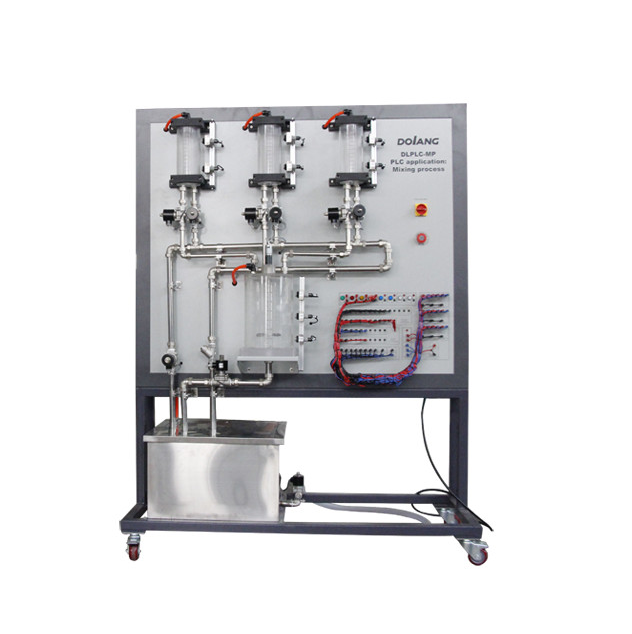

This training system is used for PLC applications program, can be used to create complex PLC control functions from the field of process engineering, in particular involving metering and mixing. The system consists of tanks, centrifugal pump and demonstration panel on stand which all components are clearly observed.
