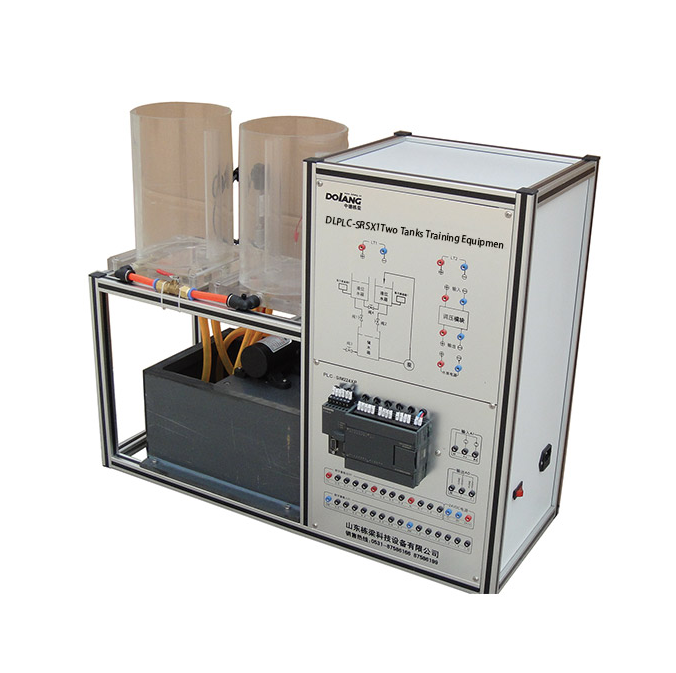

The device set PLC, liquid level sensor, solenoid valve combination in one of the training system, through the sensor signal acquisition, PLC programming, more complex position control for solenoid valve, water pump for switch quantity control, temporal logic control, and realize liquid level switch and closed loop automatically management function.
■ Experiment training contents
● Know the constitution of control system.
● Master the rules of simple process control.
● Characteristics test for object of double water tank liquid level.
● Single circuit control for object of double water tank liquid level.
● Inverter module
