DOLANG DLSKL-mate TD II CNC 维修培训考核系统
制造商: DOLANG Model: DLSKL-mate TD II 保障: 12 Month - 报价要求
- 报价要求
- 联系
● Total dimension: 1600×1020×1350mm
● Input power: three-phase, five-wire AC 380V±10% 50Hz/60/Hz
● Leakage protection: Leakage current ≤ 30mA
Lack of phase automatic protection, overload protection
● Capacity: < 1.5KVA
■ Optional (System)
● Siemens CNC system
● Fanuc CNC system
● HCNC
● GSK system
Datasheet
● CNC system uses Fanuc 0i mate Td, X-axis, Y-axis, Z-axis are drived by servo motor, spindle motor is driven by frequency converter.

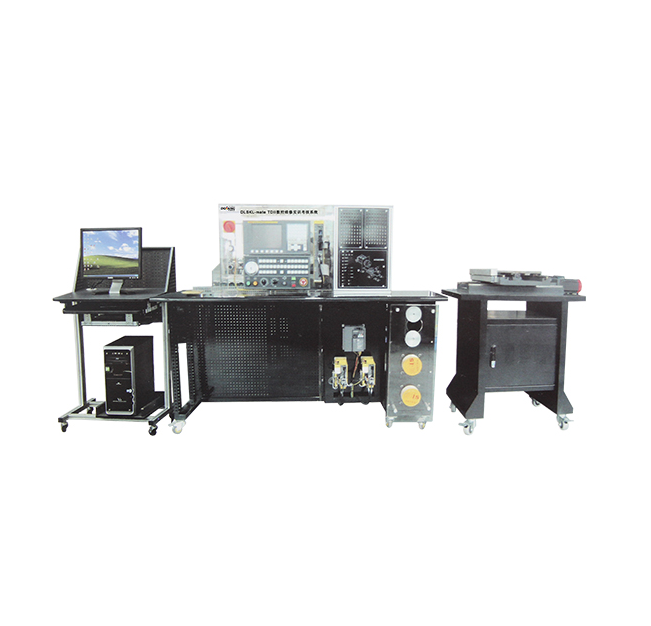

● This device organically combines the machine's electrical parts with mechanical parts, it consists of CNC system, frequency conversion spindle system, electrical control panels, power control section, servo drives control and machine tool semi-physical simulation model, it displays all the action of the machine tool.
The device can complete a number of teaching and training like CNC system installation,parameter setting,fault diagnosis and maintenance, assembly debugging CNC lathes, CNC programming and machining operations.
