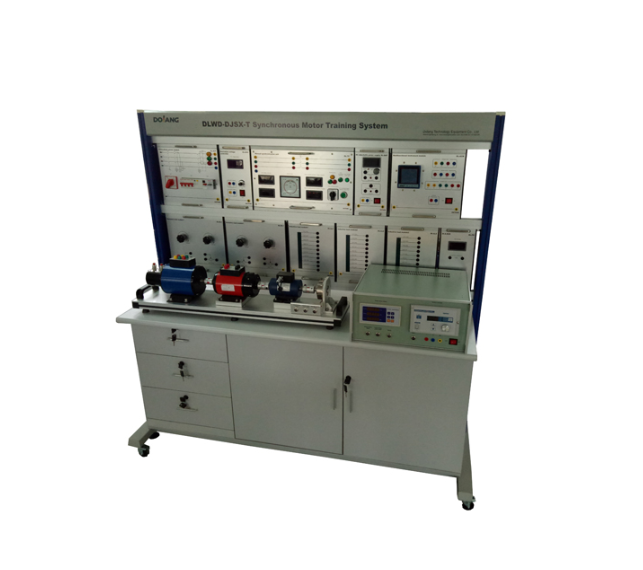

DOLANG DLWD-DJSX-T 同步电机培训系统

Technical Parameters

1. Input power: three-phase five-wire AC380V ± 10% 50HZ

2. Working environment: temperature -10 ℃ - +40 ℃ relative humidity <85% (25 ℃) altitude <4000m

3. Power control: automatic air switch off power, with overvoltage protection, undervoltage protection, overcurrent protection, leakage protection system.

4. Output power:

Three-phase AC 380V ± 10% 50HZ; single-phase AC 220V ± 10% 50HZ.

5. Dimensions: 1600mm × 700mm × 1750mm

Training Content:

1 The influence of resistance，capacitance and inductance value on power factor;

2 Torque control;

3 Synchronous motor control;

4 Excitation system debugging of synchronous motor;

5 Power generation training of synchronous generator;

6 Synchronous generator control;

7 DC motor control etc.
