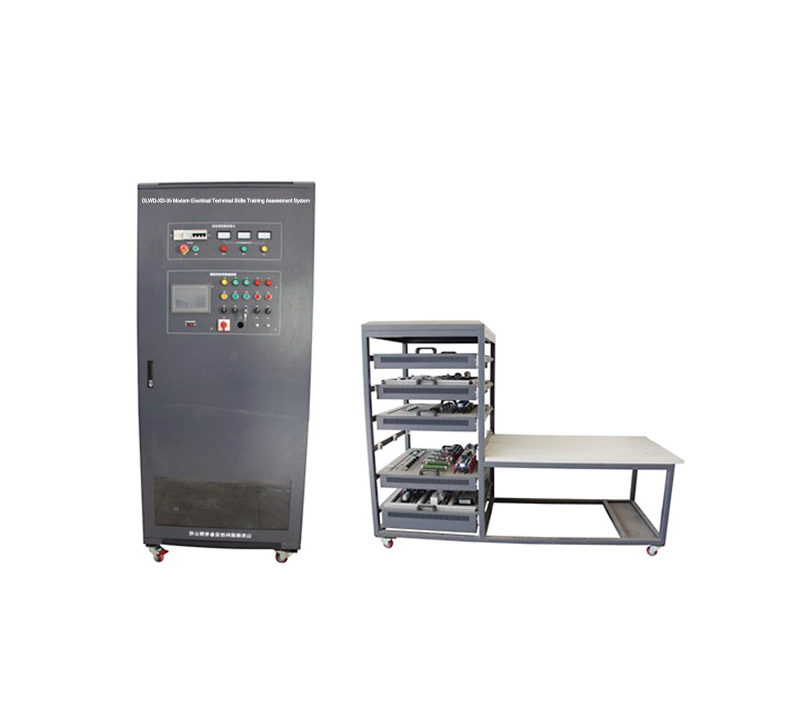

DOLANG DLWD-XD35 Modern Electrical Technical Skills Training Assessment System

Technical Parameter

● Total dimension: 800×800×1680mm

● Input power: three-phase, five-wire AC 380V±10%  50Hz/60Hz

● Output power: AC 380V safety terminal output , output power indication,  AC 220V safety socket output, DC 24V,12V  safety terminal output

● Capacity: < 1.5KVA

■ Optional (PLC type)

● Siemens system

● Mitsubishi system




● The device use standard electrical control cabinet as main body,it adopts smart double-sided space.

● The devices includes main power supply,observation window,electrical system and motors.The internal cabinet adopts flexible & removable hanging box modules,including stepper motor module,AC servo motor module,PLC, frequency converter module,electric drive and lighting circuit modulem Lathe machine,Milling machine,boring machine,electric hoist module and wireless fault assessment system etc,it meet requirment of vocational skills certification.
