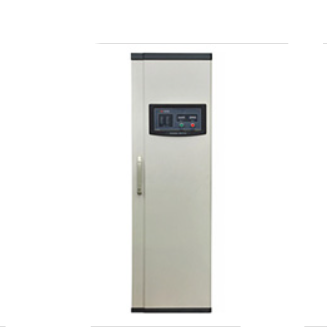

Dongling CU-3 冷却单元 (120 L/min, 1MPa)

Features

The CU series cooling unit is specially designed and manufactured for the heat dissipation of water-cooled electrodynamic vibration generator.

Specification

Internal Circle Water Flow (distilled water): 120 L/min

Internal Circle Water Pressure (distilled water): 1MPa

External Circle Water Flow (City Water): 320 L/min

External Circle Water Pressure (City Water): 0.25-0.4MPa

Water Pump Power: Internal Circle 8 kW/ External Circle 6.5 kW

Distilled Water Requirement: Water hardness 30ppm, pH 7-8, Conductivity 1Us/cm
