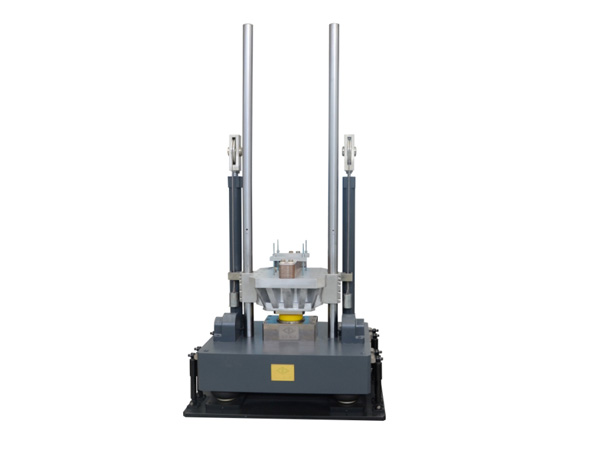

Dongling SY10-5 液压自由落体冲击机 (5kg, 200-15000 m/s2)

Related Load (kg): 5

Table Size (mm): 200x200

Shock Waveform: Half-sine/Post-peak sawtooth

Shock Acceleration (m/s2): 200-15000/150-1000

Pulse Duration (ms): 11-0.8/18-6

Dimension (L×W×H: mm): 900 x 510 x 2100

Weight (kg): 500

Size of Oil Source (mm): 350×300×690

Volume of Oil Source: 60L

Power Supply: 380V 50,60Hz 1.5kW

Standard: GJB150 GJB360 GJB548 GB/T2423 JJG541 IEC60068-2-27

Minimum Pulse Width: 0.8ms

Minimum Pulse Width: 2ms


SY-10 Hydraulic Free Fall Shock Machine Catalog
