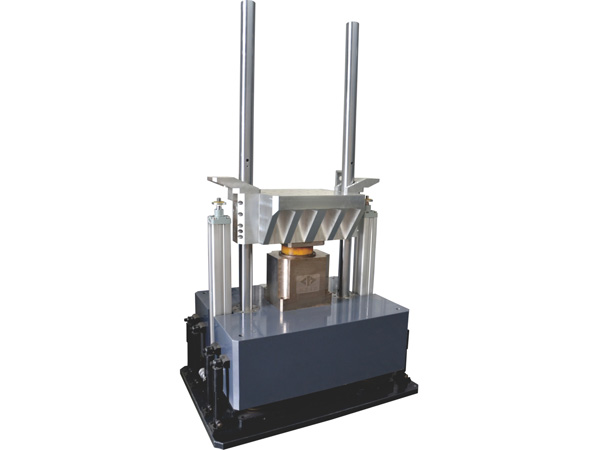

Dongling SY11-600 气动自由落体冲击机 (600kg, 30-1500m/s2)

Rated Load (kg): 600

Table Size (mm): 800x1000

Shock Waveform: Half-sine/ Postpeak Sawtooth/Trapezoid

Shock Acceleration (m/s2): 30-1500/ 150-600/ 300-600

Pulse Duration (ms): 40-6/ 18-6/ 12-6

Dimension (L×W×H: mm): 1450x1350x2450

Size of Control Cabinet (mm): 545 x 720x1335

Size of Pressurization Device (mm): 400 x 400 x 850

Weight (kg): 3800

Max. Bump Frequency (time/min): 40

Standard: GJB150 GJB360 GJB548 GB/T2423 JJG541 MIL-STD-810F EC68-2-27
