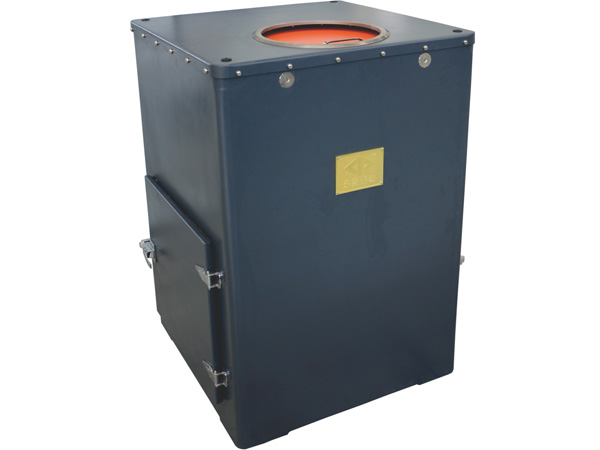

Dongling SY30-20 离心式恒加速度测试仪 (400 rpm, 50-1000 m/s2)

Max. Load (kg): 20

Position: 2

Acceleration (m/s2): 50-1000

Specimen Size (mm): 300x300x300

Specimen-Installed Radius (mm): 750

Turning Radius (mm): 900

Max. Rotating Speed (r/min): 400

Start Time (min): ≤3

Stop Time (min): ≤3

Continuous Working Time (min): 60

Power Consumption (kVA): 11

Dimension (L×W×H: mm): 2000x2000x1100

Current Collector (optional): 12 ring 500V 5A

Weight (kg): 2500

Control Cabinet (mm): Single cabinet 555 x 1000 x 1300; Double cabinet 1200 x 1200 x 1380

Power Supply: Three-phase 380V, 50/60Hz

Measure and Control System: IPC control

Standard: GJB150 GJB360 GB/T2423 MIL-STD-810F IEC68-2-7

Working Environment

Temperature range: 0 ~ 40°C

Humidity range: ≤80% (non-condensing)
