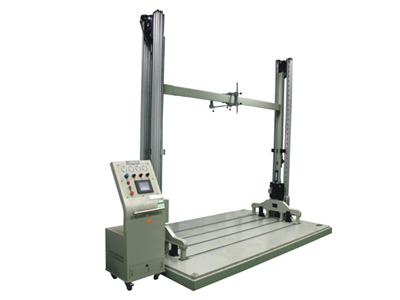

Dongling SY41-500 气动跌落测试仪 (500kg, 0-800mm)

Max. Load (kg): 500

Drop Height (mm): 0-800

Specimen Size (mm): 1200x1200x1200

Size of Bottom Plate (mm): 2400x1600

Test Mode: Face, Edge, Corner

Dimension (L×W×H: mm): 2400x1600x3100

Power Consumption (kVA): 4

Weight (kg): 1500

Control Cabinet (mm): 500 x 1360 x 470

Power Supply: Three-phase 380V, 50/60Hz

Standard: GB/T4857.5 IS02243 - 1985(E) GB/T2423.5 IEC68-2-27, ASTM D 5276-1998 ISTA 1 A/1 B:2001

Working Environment

Temperature range: 0~40°C

Humidity range: ≤80% (non condensing)

Remark: Both drop height and package size can be customized in accordance with the needs of our users. The maximum drop height can reach 4m.


SY-41 Pneumatic Drop Tester Catalog
