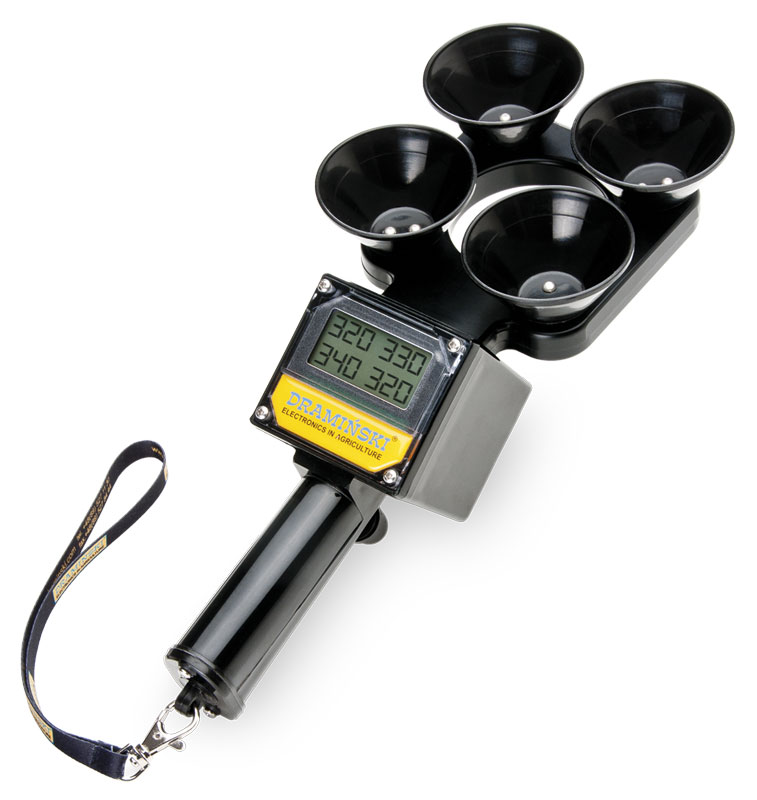

DRAMINSKI MD 4x4Q 乳腺炎牛奶检测仪

A 4-quarter device for detecting sub-clinical mastitis in its earliest, visually undetectable stage.

Why should you have it?

  • portable and easy to use device that allows for the production of top quality milk,
  • innovative 4-cup design with a 4-quarter display,
  • helps to detect an early stage of illness without visible symptoms (Mastitis Subclinica),
  • detects medical condition separately for each quarter, displaying the difference between quarters and pointing to the one with the greatest risk from mastitis,
  • allows for effective prevention through fast udder condition monitoring,
  • accelerates the decision about treatment and shortens grace period,
  • reduces the costs of keeping the herd in good health condition,
  • reduces financial losses related to production of milk,
  • does not require using any chemicals
  • investment for years.

Principle of operation

The detector measures changes in the electrical resistance of milk, as development of sub-clinical mastitis (asymptomatic stage) is accompanied by an increase in salt levels in milk, which involves a change in the resistance. This rule is considered to be the most reliable indirect test in diagnosing Mastitis Subclinica.

The test is very simple:

  • you need to milk the first portion of milk directly from the teat to measuring cups
  • press the button and read the result

 The set includes:

  • DRAMIŃSKI MD4X4Q mastitis detector,
  • 1 x 9V 6F-22 type battery,
  • reusable transport packaging (made of plastic),
  • manual.


Unit weight   380 g (with battery)
Dimensions   31.0 x 13.0 x 9.0 cm
Power supply   1 x 9 V battery, type 6F-22
Battery low indication   automatic
Power input   about 17 mA
Measurement control   single chip microcomputer
Estimated working time on one battery pack   about 24h
Display   LCD display 4 x 3 digits
Measuring range   10-990 units
Measurement resolution   10 units
Recommended storage temperature   from 5°C to 45°C
