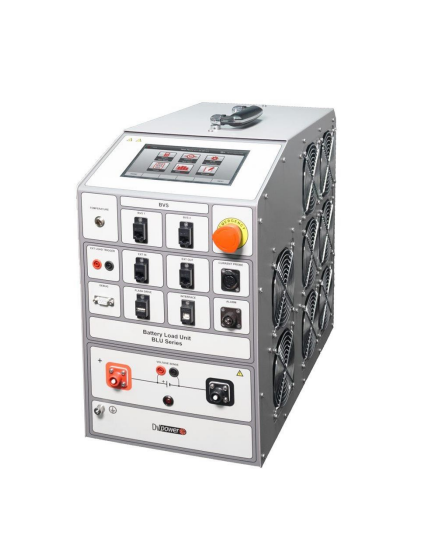

DV Power BLU1000C 电池容量测试仪 (0 - 200A DC/ 0.1 A)
制造商: DV Power Model: BLU1000C - 联系
Mains power supply:
Connection according to IEC/EN60320-1; C320
Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase
Dimension: 520 x 260 x 436 mm (20.5 x 10.2 x 17.1 in)
Weights: 23.8 kg (52.5 lbs)
Internal current measurement:
Range: 0 - 200A DC
Resolution: 0.1 A
Current measurement:
Display range: 0 – 2 999.9 A DC
Basic accuracy: ± (0.5 % of reading + 0.1 A)
Resolution: 0.1 A
Time measurement: ± 0.1% of reading ± 1 digit
Display size: 7 inch colour touch screen display
Range / Resolution:
Current: 0 – 2 999.9 A DC / 0.1 A
Voltage: 0 – 1 999.9 V DC / 0.1 V
Capacity: 0 – 9 999,9 Ah / 0.1 Ah
Time: 00h:00m:00s - 23h:59m:59s / 1 sec
Input for current probe:
Range: 0 – 1 V DC
Input impedance: > 1 MΩ
Communication:
USB
RS232 (optional)
Ethernet (optional)
Load section:
Battery voltage: 0.0 – 1350 V
Power: 0 – 15 kW
Discharge modes: Constant current / power / resistance / voltage; current, power or resistance profile mode
Available languages: English, German, Italian, Polish, Croatian
Environment conditions:
Operating temperature: -20 °C to +50 °C / -4 °F to +122 °F
Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F
Relative humidity: up to 95%, non-condensing
Pollution degree: 2
