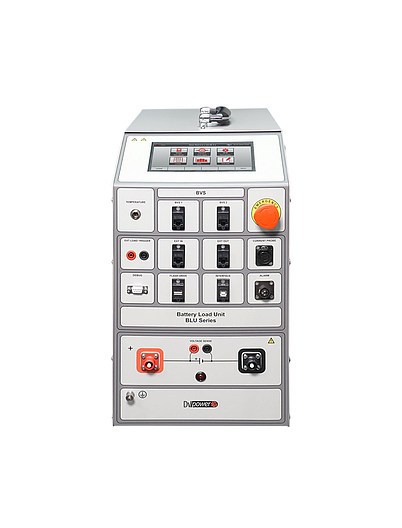

DV Power BLU1000D 蓄电池容量测试仪/放电测试仪

Mains Power Supply

• Connection according to IEC/EN60320-1; C320

• Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase

Dimensions and Weights

• Dimension: 520 x 260 x 436 mm/ 20.5 x 10.2 x 17.1 in

• Weight: 23.8 kg/ 52.5 lbs

Internal current measurement

• Range: 0 – 200 A DC

• Resolution: 0.1 A

Current measurement

• Display range: 0 – 2 999.9 A DC

• Basic accuracy: ± (0.5 % of reading + 0.1 A)

• Resolution: 0.1 A

Internal voltage measurement & accuracy

• Range: 0 - 1020 V DC

• Resolution: 0.1 V

• Accuracy: ±0.5% of reading ± 0.1 V

Time measurement

• Typical accuracy: ± 0.1% of reading ± 1 digit

Display size: 7 inch color touch screen display

Range / Resolution

• Current: 0 – 2 999.9 A DC / 0.1 A

• Voltage: 0 – 1 999.9 V DC / 0.1 V

• Capacity: 0 – 9 999.9 Ah / 0.1 Ah

• Time: 00h:00m:00s - 23h:59m:59s / 1 sec

Load section

• Battery voltage: 0 – 1350 V

• Power:0 – 15 kW

Environment conditions

• Operating temperature: -20 °C to +50 °C / -4 °F to +122 °F

• Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F

• Relative humidity: up to 95%, non-condensing

• Pollution degree: 2
