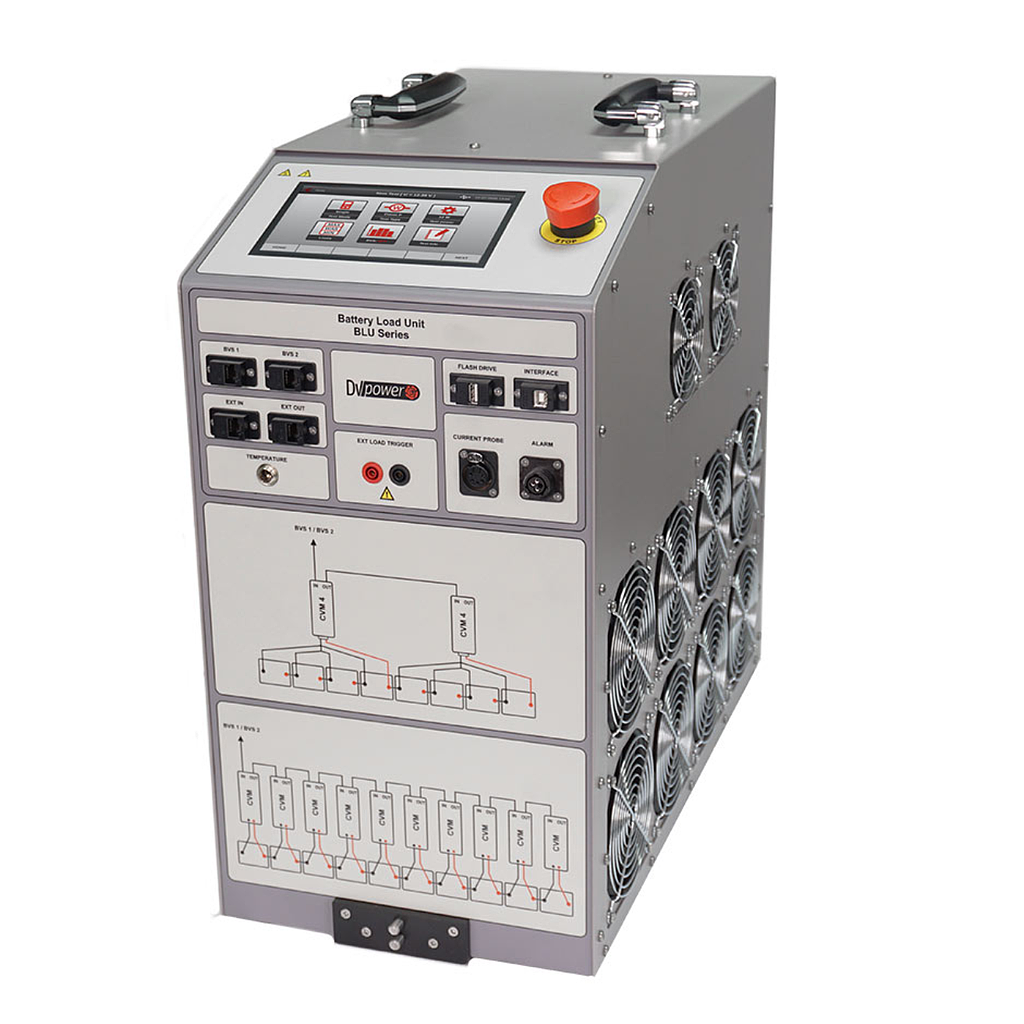

DV Power BLU600C 蓄电池容量测试仪/放电测试仪
制造商: DV Power Model: BLU600C - 联系
Mains Power Supply
• Connection according to IEC/EN60320-1; C320
• Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase
Power interruption: 40 ms max
• Input power: 200 W (BLU-C), 400 W (BLU-C + BVS)
Dimension and Weight
• Dimension: 590 x 280 x 600 mm/ 23.2 x 11.0 x 23.6 in
• Weight: 28.5 kg/ 62.7 lbs
Internal current measurement:
Range: 0 – 400 A DC
Resolution: 0.1 A
Internal voltage measurement:
Battery voltage range: 0 – 500 V DC
Battery voltage resolution: 0.1 V
Cell voltage range: ± 30 V DC
Cell voltage res.: 1mV
Intercell connection voltage range: ± 50 mV DC
Intercell connection voltage res.: 1µV
Typical voltage measurement accuracy: ±0.5% of reading ± 0.1 V (0 - 800 V DC)
Time measurement
Typical accuracy: ± 0.1% of reading ± 1 digit
Display size: 7 inch color touch screen display
Range / Resolution
• Current: 0 – 2 999.9 A DC / 0.1 A
• Voltage: 0 – 999.9 V DC / 0.1 V
• Capacity: 0 – 9999.9 Ah / 0.1 Ah
• Time: 00h:00m:00s - 23h:59m:59s / 1 sec
Load section
Battery voltage: 5.25* – 500 V
Power: 42 kW (max)
Constant current (Const I): Range: 0 – 300 A DC (42 kW)*
Constant resistance (Const R): Resistance (0.1 – 5 000 Ω)
Constant power (Const P): Range: 0 – 42 kW*/ Resolution (max): 0.01 kW
Environment conditions
• Operating temperature: -20 °C to +55 °C / -4 °F to +131 °F
• Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F
• Relative humidity: 0 - 95%, non-condensing
• Altitude: up to 3000 m
• Pollution degree: 2
