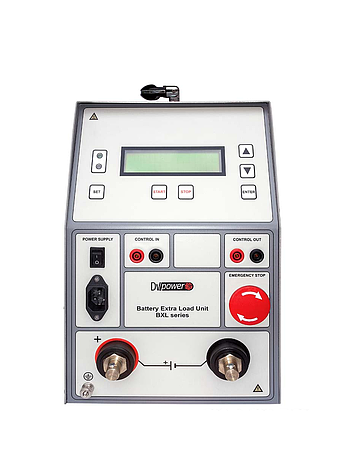

DV Power BXL-T 电池额外负载单元 (330A/ 18kW)
制造商: DV Power Model: BXL-T - 联系
Mains Power Supply:
Connection according to IEC/EN60320-1; C320
Voltage: 90 V – 264 V AC, 50 / 60 Hz, single-phase
Input power: 200 VA
Dimension: 560 x 221 x 355 mm/ 22 x 8.7 x 14 in
Weight: 12.5 kg/ 28 lbs
Maximum discharge current & power:
Current: 330 A
Power: 18 kW
Internal voltage measurement:
Range: 0 - 75 V DC
Resolution: 1 V
Typical accuracy: ± 0.5% of reading ± 1 V
Internal current measurement:
Range: 0 - 450 A DC
Resolution: 1 A
Typical accuracy: ± 0.5% of reading ± 1 V
Display:
LCD screen 16 characters by 2 lines
LCD display with backlight, visible in bright sunlight
Environment conditions
Operating temperature: -20 °C to +55 °C / -4 °F to +131 °F
Storage & Transportation temperature: -40 °C to +70 °C / -40 °F to +158 °F
Relative humidity 0 - 95%, non-condensing
Pollution degree: 2
