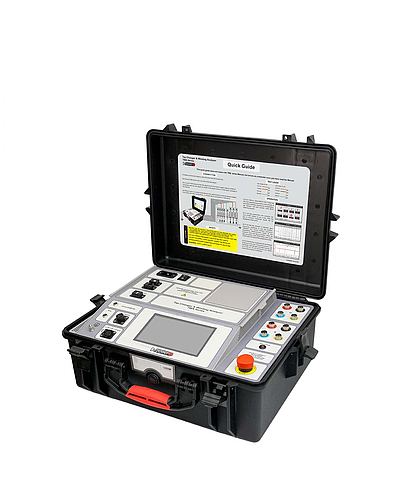

DV Power TWA400 Three-Phase Transformer Winding Resistance Meter (0.1 μΩ - 10 kΩ)
制造商: DV Power Model: TWA400 - 联系
Output:
Test currents: 5 mA – 40 A DC
Output voltage: up to 55 V DC
Winding Resistance Measurement:
Measurement range: 0.1 μΩ - 10 kΩ
Measurement range / Typical accuracy:
0.1 μΩ – 1.999 kΩ: ± (0.1% rdg + 0.1% F.S.)
2 kΩ – 9.999 kΩ: ± (0.2% rdg + 0.1% F.S.)
Measurement range / Resolution:
0.1 μΩ – 999.9 μΩ: 0.1 μΩ
1.000 mΩ – 9.999 mΩ: 1 μΩ
10.00 mΩ – 99.99 mΩ: 10 μΩ
100.0 mΩ – 999.9 mΩ: 0.1 mΩ
1.000 Ω – 9.999 Ω: 1 mΩ
10.00 Ω – 99.99 Ω: 10 mΩ
100.0 Ω – 999.9 Ω: 0.1 Ω
1.000 kΩ – 9.999 kΩ: 1 Ω
OLTC DVtest: Resolution: 0.1 ms
Current Clamp Meter Specifications:
Nominal current: 300 ARMS or 450 A DCPK
Measuring ranges: 30 / 300 A
Frequency range: DC to 20 kHz (-3 dB)
Resolution: ±50 / ±100 mA
Accuracy: ±1% rdg
Measurement range temperature: -50 ºC – +180 ºC / -58 ºF – +356 ºF
Thermometer Pt100 class B
Resolution: 0.1 ºC
Display: 7’’ graphical touchscreen display
Operating temperature: -20 °C – +55 °C / -4 °F – +131 °F
Storage & transportation temperature: -40 °C – +70 °C / -40 °F – +158 °F
Humidity: 0 – 95% relative humidity, non-condensing
Dimensions (W x H x D): 543 x 218 x 427 mm/ 21.4 x 8.6 x 16.8 in
Weight: 15.0 kg/ 33.0 lbs
