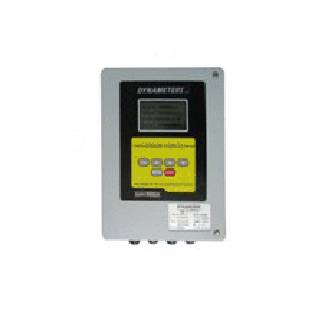

Dynaflox DMDF-OP-A部分填充管道流量计

  • 制造商: Dynaflox
    Model: DMDF-OP-A
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




Accuracy: 0.5%~2.0 % F.S
Pipe sizes: : DN100~3000
Flow Calculator
Enclosure: NEMA4x IP65, cast aluminum
Dimension: 260L x 193 W x 80 H mm
Power supply: Std: 110~240 VAC. opt: 12~28 VDC
Output: 4-20mA
Temp.: -40 + 70 C
Transmitter
Enclosure: NEMA4 x [IP65], cast aluminum
Dimension: 260L x 193 W x 80 H mm
Power supply: Std: 110~240 VAC. opt: 12~28 VDC
Output: 4-20mA
Temp.: -40 + 70 C

Velocity Transducer
Measuring range: 0.05 m/s ~ 12m/s
Type: Insertion and clamp-on
Liquid temp.: Std: -40+121C. Opt: -40+250 C -40~150 for insertion )
Cable length: std : 6m . Opt: 300m
Housing material:
Std: Aluminum
High temp: Engineering plastic
Stainless steel : Stainless steel
Insertion : Stainless steel
Protection class: Std: IP65. Opt: IP68

Level transducer
Measuring range: 0.15~5.4 m
Temp.: -40 ~60 C
Power supply: 12-36  VDC
Outputs: 4-20mA
Housing material: Engineering plastic

Details



Features:

Excellent low flow rate measurement ability, low to 0.05 m/s
Automatically signal gain adjustment
Superior measurement accuracy
Complete in specifications, and can provide a variety of applications
User-friendly configurations
4-20mA and RS485/MODBUS output, GPRS is optional
Very suitable for large pipe sewage measurement

Has national explosion proof certificate



Partially Filled Pipe Flow meters

Flow Calculator

 The flow calculator can set the cross-sectional area calculation of partially filled pipe or open channel,

for circular pipe, it only need to input the inner diameter; for open channel, it only need to input the width;

users also can input up to 20 point coordinates of channel to calculate the cross-sectional area

.The flow calculator can display the velocity, level, flow rate and flow totalizer,

and is configured with 4-20mA and RS485/MODBUS output, GPRS is optional.

 Transmitter

The transmitter and level transducer output 4-20mA analog signal of the velocity and level,

which are connected to the two external 4-20mA input of flow calculator.

Velocity Transducer

The velocity transducer includes two types: Clamp-on and Insertion, both of them are hot-tapped installation

and demounted online.

Partially Filled Pipe Flow meters

When installing the insertion velocity transducer, the pipe can’t be welded directly, such as cement pipe,

ductile iron or other unweldable material, please notify manufacturer for extended velocity transducers

(wall thickness of pipe can be up to 110mm) shown as below. In this case, it also need to install a weldable

(usually carbon steel) hoop shown as below.

Partially Filled Pipe Flow meters

Level Transducer

The measurement principle of level transducer: the level transducer uses ultrasonic level meter

of special small-scale and low dead zone to measure the level. When installing the level meter,

user needs to fix a welding base, the height welding base is usually 80100mm,

so it can ensure a high measurement accuracy.



TECHNICAL SPECIFICATIONS

Partially Filled Pipe Flow meters
