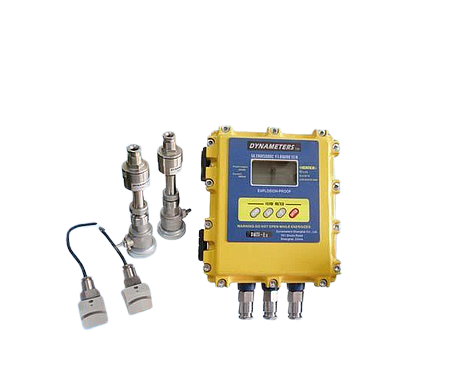

Dynaflox DMTF-Ex 防爆运输时间超声波流量计

Transmitter

Power Supply: 24 VDC
Velocity:  ±40 ft/s (±12m/s)
Display: LCD 4x16
Units Rate Totalized: User Configured (English and Metric);
Output: 4~20 mA, pulse, relay, RS232; options: up to 8 GB Data logger
Accuracy: ±1.0 % of reading at rates >0.5 m/s
                 ±2.0 % of reading at rates <0.5 m="" s="" br=""> Sensitivity: Flow Rate: 0.001ft/s (0.0003m/s)
Repeatability: 0.2% of reading
Security Keypad lockout, access code enable
Dimension and weight:  230x226x127mm Weight: <8kg

Transducer
Liquid Types Supported: Virtually most any liquid containing less than 2% total suspended solids (TSS) or aeration
Suited Liquid Temperature:
Std. Temp.: -40℃~121℃
High Temp.: -40℃~250℃( for clamp-on), -40℃~150℃ ( for insertion )
Cable length: standard 6m, can be optional max. 300m.
Pipe Size option:
Std M clamp-on transducer: DN50-1000
L clamp-on transducer: DN1000-2500
Insertion transducer: DN65-4500
Dimension:
M size: 65 x 48 x 48 mm, <1.5 kg="" br=""> L size: 80 x 53 x 53 mm, <3 kg="" br=""> std insertion : 190 mm, < 0.6 kg
Extended insertion : 325mm; <1.6kg
