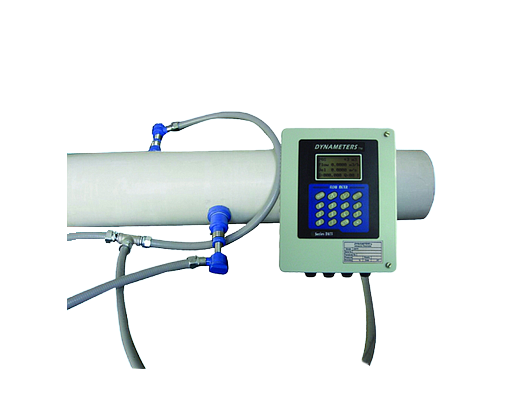

Dynaflox系列DMTFD中心插入式超声波流量计

Transmitter

Power Supply: std:115/230VAC 50/60Hz±15%, 5VA max. OPt: 10-28 VDC, 2.5VA max.
Velocity: 0~ ±40 ft/s (0~±12m/s)
Display: LCD 4x16
Units Rate Totalized: User Configured (English and Metric);
Output: 4~20 mA, pulse, relay, RS232; options: up to 8 GB Data logger
Accuracy: ±1.0 %~20.% of reading at rates >0.5 m/s
                 ±2.0 % of reading at rates <0.5 m="" s="" br=""> Sensitivity: Flow Rate: 0.001ft/s (0.0003m/s)
Repeatability: 0.2% of reading
Security Keypad lockout, access code enable
Dimension and weight:
Std: 260x193x80 mm, Nặng: <2.5 kg="" br=""> Exp: 310x226x127 mm; nặng <5kg

Transducer
Liquid Types Supported: Virtually most any liquid containing less than 2% total suspended solids (TSS) or aeration
Pipe range: DN65-4500 mm
Suited liquid Temp: Std,Temp, Transducer: -40℃~121℃, High temp.Transducer: -40℃~150℃
Cable length: std 6m, opt: 300m
