Function / Features
- Certificate : Certificate of Patent
- Certificate : Certificate of CE
- Relay Contact output (3 contacts)
- High, Low Alarm & Cleaning Contact
- Simple Operation by 4 Keypad Button
- High brightness 7-segment display
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- Automatic Cleaning Control(Air jet, Water jet) Function
- Panel mounting (DIN144 size)
- Microprocessor-based Digital Program Controller
- Low-Cost for user satisfaction

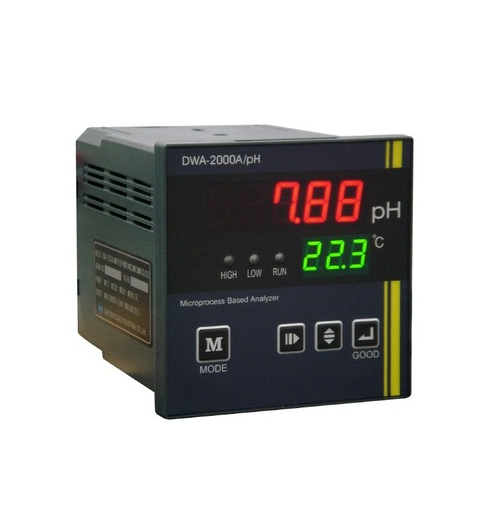

Specifications - Code No. : 413120001pH
- Model : DWA-2000A-pH
- Channel : Single channel
- Range : 0 ~ 14 pH (Resolution: 0.01)
- Meas. Method : Combination glass electrode
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ±0.1 pH of F.S
- Repetition & Reappearance : ±0.1 pH of F.S
- Response time : 60 sec(90% saturation)
- Analog output : 4~20mA DC(STD.)
- Relay output : High, Low & Cleaning Contact
- Display : measuring value, Temp (7-segment)
- Humidity : max. 90%(non-condensing)
- IP Rating : IP54
- Size : 96(W)x96(H)x125(D)
- Installation : Panel mounting (DIN96 size)
OPTION:
|
PH ELECTRODE |
|
PRICES (USD) |
|
+ PH Electrode ONLINE FOR WATER AND WATER PURITY, BODY BY PPS Model PP34 Manufacturer: DYS – Korea PH electrode using appropriate online measurements in water and purified water. |
1 |
190 |
|
+ PH Electrode ONLINE FOR WATER TREATMENT, BODY BY PPS |
1 |
210 |
|
+ PH Electrode ONLINE FOR WATER AND PURE WATER, WITH GLASS BODY |
1 |
240 |
|
+ PH Electrode ONLINE FOR WATER TREATMENT, BODY WITH GLASS |
1 |
240 |
|
+ PH Electrode ONLINE FOR PROCESSING INDUSTRY |
1 |
165 |
