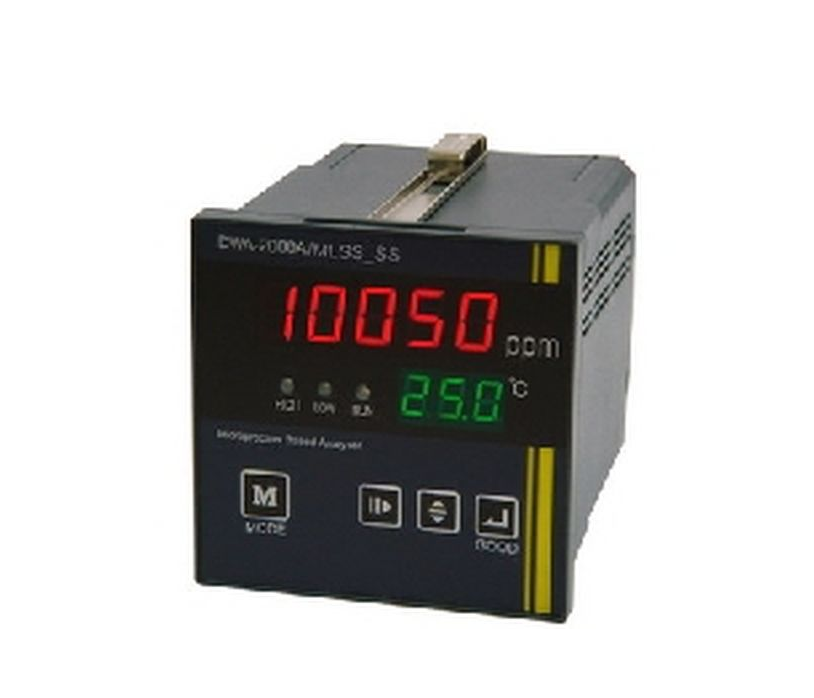

DYS DWA-2000A-SS SS控制器

Function / Features

- Certificate : Certificate of Patent
- Certificate : Certificate of CE
- Relay Contact output (3 contacts) High, Low Alarm & Cleaning Contact
- Simple Operation by 4 Keypad Button
- High brightness 7-segment display
- Isolated(4~20, 0~20, 0~24 mA DC) Output Transmission
- Automatic Cleaning Control(Air/Water/Wiper) Function
- panel mounting (DIN96 size)
- Microprocessor-based Digital Program Controller
- Low-Cost for user satisfaction

 Specifications   - Code No. : 413120001SS
- Model : DWA-2000A-SS
- Channel : Single channel
- Range : 0 ~ 2,000 mg/L or user spec’.
- Meas. Method : IR LED 880nm Scattering
- Power : AC 110/220V, 50/60Hz, 3VA
- Accuracy : ± 3 % of F.S
- Repetition & Reappearance : ± 3 % of F.S
- Response time : 120 sec(90% saturation)
- Analog output : 4~20mA DC(STD.)
- Relay output : High, Low & Cleaning Contact
- Display : measuring value(7-segment)
- Humidity : max. 90%(non-condensing)
- IP Rating : IP54
- Size : 96(W)x96(H)x125(D)
- Installation : panel mounting (DIN 96 size)

Detail

Option:



TT

SS ELECTRODE



Đơn giá (USD)

1

+ ĐIỆN CỰC SS ONLINE

Model SS-450

Hãng sản xuất: DYS – Hàn Quốc

- Thang đo: 0 – 1500 mg/l

- Thân sensor bằng SUS304, ACETAL

- Holder bằng SUS316

- Cáp dài 10 mét.

1



2

+ ĐIỆN CỰC SS ONLINE

Model TCSS-200

Hãng sản xuất: DYS – Hàn Quốc

- Thang đo: 0 – 200 mg/l

- Thân sensor bằng SUS304, ACETAL

- Holder bằng SUS316

- Cáp dài 10 mét.

1
