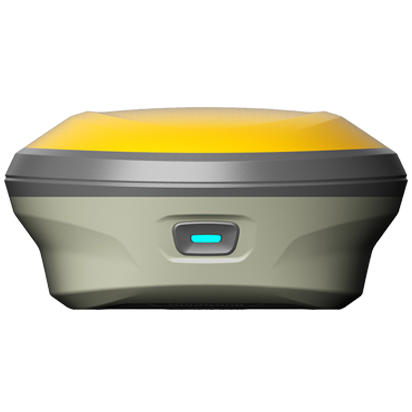

E-survey E500-H倾斜式RTK接收机
制造商: E-survey Model: E500-H - 报价要求
- 联系
Satellites tracking
GPS: L1CA/L1P/L1C/L2P/L2C/L5
BDS: B1I/B2I/B3I/B1C/B2a/B2b/ ACEBOC
GLONASS: G1/G2/G3, P1/P2
GALILEO: E1/E5a/E5b/E6/ALTBOC
QZSS: L1CA/L1C/L2C/L5/LEX
IRNSS: L5
SBAS1: L1, L5
L-Band: Atlas H10/H30/Basic
Channels: 800
Cold start:< 60 seconds
Warm start: < 30 seconds
Hot start < 10 seconds
RTK signal initialization: < 8 seconds
Initialization reliability: > 99.9%
Update rate: 10 Hz- 50 Hz
Battery: Rechargeable and built-in Lithium-ion battery, 7.2 V ~ 6800 mAh
Operation system: Linux
Internal memory: 8 GB
Dimension: Φ148 mm x H74.5 mm
Weight: 1.06kg
Storage temperature:-45℃ - +80℃
Operating temperature: -40℃ - +65℃
Water / dust proof: IP67
