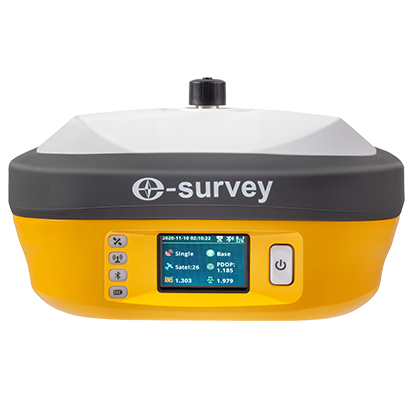

E-survey E800-H 高性能RTK接收机

Satellites tracking

GPS: L1CA/L1P/L1C/L2P/L2C/L5

BDS: B1I/B2I/B3I/B1C/B2a/B2b/ ACEBOC

GLONASS: G1/G2/G3, P1/P2

GALILEO: E1/E5a/E5b/E6/ALTBOC

QZSS: L1CA/L1C/L2C/L5/LEX

IRNSS: L5

SBAS1: L1, L5

L-Band: Atlas H10/H30/Basic

Channels: 800

Cold start:< 60 seconds

Warm start: < 30 seconds

Hot start < 10 seconds

RTK signal initialization: < 8 seconds

Initialization reliability: > 99.9%

Update rate: 10 Hz- 50 Hz

Battery: Rechargeable and built-in Lithium-ion battery, 7.2 V ~ 13.6Ah

Operation system: Linux

Internal memory: 32 GB

Dimension: 154mm x 154 mm x 76 mm

Weight: 1.5 kg

Screen 1.45’’ colorful touchable screen

Storage temperature:-45℃ - +80℃

Operating temperature: -40℃ - +65℃

Water / dust proof: IP67
