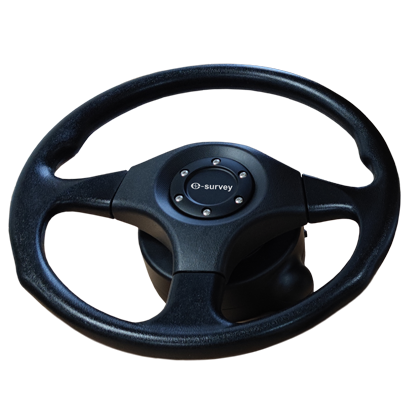

E-survey EW1 电动方向盘 (For EAS301 Auto Steering System)

Accuracy: Dry land: 2.5 cm(≤ 9 km/h); Paddy land: 5 cm(≤ 9 km/h)

Line acquisition distance: <10 m

Vehicle velocity range: 0.1 - 18 km/h

Correction data source: GSM, Radio, L-band, SBAS

NMEA output: GGA, GSV, VTG, GSA, ZDA, RMC, GST

Data formats: RTCM3.X, CMR, ROX

EW1 Electric Steering Wheel

Interface: ALTW/1DC-06PMMS-LC7001

Communication protocol: SAE J1939/ISO11783 CAN BUS

Dimensions: Φ180 mm × 80 mm

Weight: 4.6 kg

Working voltage: 9 - 16 V dc

Nominal voltage: 12 V dc

Output torque: 9 V dc : 6.5N.m; 12 V dc : 8.5N.m

Maximum output torque: 13 N·m

Maximum power: < 200 W

Maximum rotation speed: 100 RPM

Load steering error: < ±5°

Response delay: Full range: 10 Hz; Straight walking: 20 Hz
