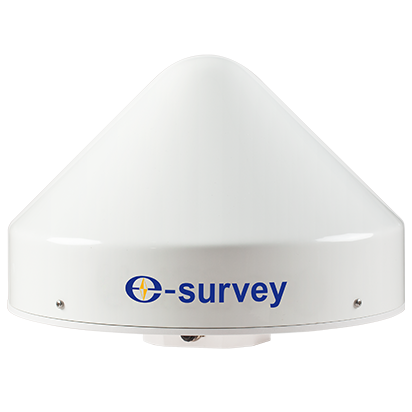

E-survey UA91 扼流圈天线

Frequency:

GPS: L1/L2/L5

BDS: B1/B2/B3

GLONASS: G1/G2/G3

GALILEO: E1/E2/E5/E6C

QZSS: L1/L2/L5

SBAS

L-Band

Water/Dust Proof: IP67

Dimension: Φ370 mm x H263 mm

Weight: 7.7 Kg

Antenna Interface: TNC-F

Voltage: 3.3 - 12 VDC

Current: 35mA typical

Frequency Range:1525 ~ 1615 MHz/1182 ~ 1278 MHz

Datasheet
