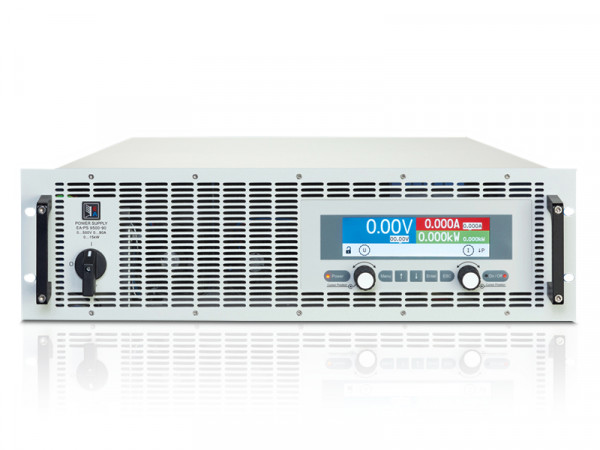

EA Elektro-Automatik PS 9040-510 3U 可编程高效直流电源 (400V model; 40V; 510A; 10000W)

Rated voltage & range : 0...40 V

Ripple (*1) : ≤320 mVPP / ≤25 mVRMS

Insulation (DC- to PE) : ±400 V

Insulation (DC+ to PE) : ±400 V

Rated current & range : 0...510 A

Rated power & range : 0...10000 W

Efficiency : ≈ 93%

Weight (*2) : ≈ 31 kg (68.3 lb)

AC: Supply

+ Voltage: 400 V models: 340...460 V, 2ph/3ph

+ Frequency : 45...66 Hz

+ Power factor : >0.99

(*1) RMS value: measured at LF with BWL 300 kHz, PP value: measured at HF with BWL 20MHz

(*2) Weight of the standard version, models with options may vary
