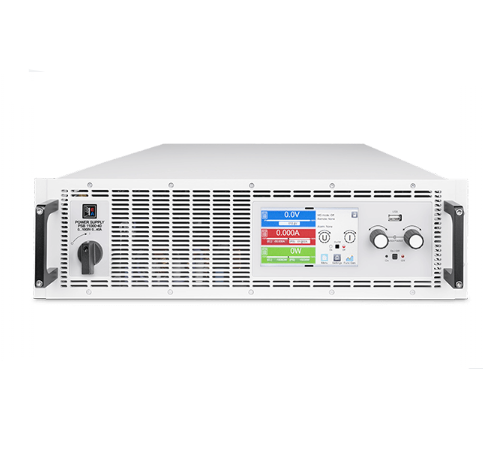

EA Elektro-Automatik PSB 12000-20 可编程双向直流电源 (2000V; 20A; 15000W)
制造商: EA Elektro-Automatik Model: PSB 12000-20 P/N: 30000708 - 报价要求
- 报价要求
- 联系
DC output:
Voltage range : 0 - 2000 V
Ripple in CV (rms) : ≤400 mV (BW 300 kHz)
Ripple in CV (pp) : ≤2400 mV (BW 20 MHz)
U Min for IMax (sink) : 7.2 V
Current range : 0 - 20 A
Power range : 0 - 15000 W(0 - 9000 W) *2
Resistance range : 3.5 Ω - 5300 Ω
Output capacitance : 60 μF
Effi ciency (up to) : 95.5% *1
Insulation:
Negative DC pole <-> PE : ±1500 V DC
Positive DC pole <-> PE : +2000 V DC
*1 At 100% power and 100% output voltage
*2 In AC voltage depending DC power derating mode
