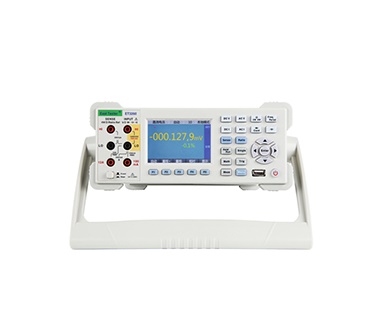

EAST TESTER ET1260A 台式数字万能表 (6½ digit)

Display 3.5-inch color screen (resolution 320*480)

According digits:  6 1/2

Maximum measurement speed: 7 times / sec

Signal terminal: front-end/back-end

DC voltage: 0 mV~1000 V; 100nV

DC current: 0 uA ~ 12 A; 10 pA

AC voltage: 1 mV~750 V; 100nV

AC current: 1 uA ~ 12 A; 100 pA

Resistance: 0 Ω ~ 1 GΩ; 10uΩ

Capacitance: 0 nF ~ 100 mF; 1 pF

Frequence/period: 3 Hz ~ 1 MHz; 1 uHz

Interface: RS-232、IEEE 488、LAN、USB Device、USB Host、Trig IN/OUT

General technical specifications:

Power voltage: 220V.AC plus or minus 10%, 45~66Hz, or 2110V.AC plus or minus 10%, 45~440Hz

Display: 3.5-inch TFT LCD, resolution 48x320, color 16M

Temperature range: - 5 ℃ ~ + 45 ℃

Humidity range: 5%~85% relative humidity

Interface: RS232, USBHost, USBDevice, LAN, GPIB (only 3260, 3250 support)

Size and weight: 265mm * 102mm * 335mm (width * height * depth), weight: 2.7kg


Standard accessories:

Model 30A51 has one Three-core power cord

32A52 type three - core stylus 1 pair

32A52 backup power fuse 2



Optional accessories:

GPIB cable (32 p01)

Cabinet installation kit (32P02)

PT100 temperature probe (32P03)

RS232 serial port (32P04)

USB data cable (32P05)
