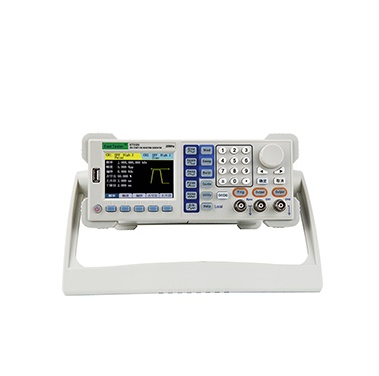

EAST TESTER ET3360 信号发生器 (60MHz)

Waveform types: Sine, square, triangle, pulse, noise and arbitrary waves (including DC)

Sine: 1uHz ~ 60MHz

Square: 1uHz ~ 10MHz

Triangle: 1uHz ~ 2MHz

Noise (-3dB): 7MHz Bandwidth

Pulse: 100uHz ~ 10MHz

Arbitrary wave: 1uHz ~ 10MHz

Frequency Resolution: 1uHz

Frequency Accuracy: ±5ppm

General Technical Specifications:

Supply voltage:200~240V, 45~65Hz

Power consumption:< 40W

Types:3.5-inch TFT LCD screen,Resolution480×320,16M color

Environment:Operation 10 ℃ ~ +40 ℃,Non-operation -10℃~+60℃

Humidity range:Within the range of 0 ~ 40 ℃,≤90% relative humidity

Interface:RS232,USB Host,USB Device



Standard accessories:

1 piece of 30A51 three-wire power line;

1 piece of 33A52 BNC coaxial cable;

1 CD-ROM



Optional accessories:

BNC alligator clip line (33P01);

Cabinet installation suit (32P02);

RS232 serial line (32P04);

USB data line (32P05).
