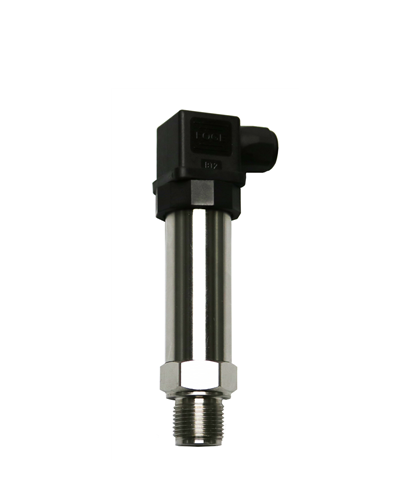

EAST TESTER ETYL310 高精密压力模块 (-100kpa ~ 60MPa)
制造商: EAST TESTER Model: ETYL310 来源: China 保障: 12 Month - 报价要求
- 联系
1. The range of pressure measurement: -100kpa ~ 60MPa (see the range table for detailed specifications).
2. Accuracy of pressure measurement: level 0.02, and level 0.05 are available.
3. Pressure units: kPa, MPa, 2.5MPa and below is kPa, above is MPa.
4. Overload alarm, when the pressure measurement value exceeds 110%FS, an alarm signal will be given.
5. Range of temperature compensation: 0 ~ 50℃.
6. Power supply: DC5V
7. Communication: RS232.
8. Operating environment: temperature -5 ~ 50℃, relative humidity < 95% (no condensation).
9. Dimension: Φ 30 x 130 mm.
10. Weight: 0.3 kg.
11. Pressure interface: M20×1.5 (can be customized according to user needs).
12. Additional function: temperature measuring function.
