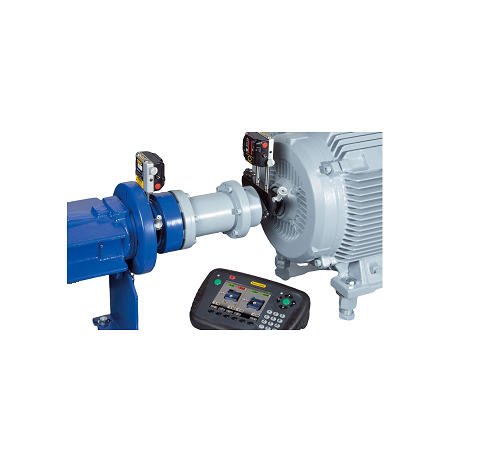

Easylaser E540 激光对中仪(10米,0.001毫米,无线)


Relative humidity: 10–95%

Weight (complete system): 7.2 kg  [15.9 lbs]

Carrying case WxHxD:  500x415x170 mm  [19.7”x16.3”x6.7”]

Measuring units :ELM40 / ELS40

Type of detector: True PSD 30 mm  [1.2”]

Wireless communication Class I Bluetooth® wireless technology

Operating time: >4 h

Resolution: 0.001 mm  [0.05 mils]

Measuring errors: ±1% +1 digit

Measurement range: Up to 10 m  [33 feet]

Type of laser: Diode laser

Laser wavelength; 635–670 nm

Laser class: Safety class II

Laser output:  <1 mw="" span="">

Electronic inclinometer: 0.1° resolution

Thermal sensors: -20–60 °C

Environmental protection: IP class 65

Temperature range: -10–50 °C

Housing material Anodized aluminium / ABS plastics

Dimensions WxHxD: 69.0x61.5x41.5 mm  [2.72”x2.42”x1.63”]

Weight 172 g  [6.0 oz]

Display unit E52

Type of display/size VGA 5.7” colour screen, backlit LED

Displayed resolution: 0.001 mm / 0.05 thou

Internal battery (fixed) Heavy duty Li Ion chargeable

Operating time Approx. 30 hours (at typical user cycle)

Temperature range: -10–50 °C

Connections USB A, USB B, Easy-Laser® units, Charger

Wireless communication Class I Bluetooth® wireless technology

Internal memory >100 000 measurements can be saved

Help functions Calculator, Unit converter

Environmental protection IP class 65

Housing material PC/ABS + TPE

Dimensions WxHxD: 250x175x63 mm  [9.8”x6.9”x2.5”]

Weight:  1020 g  [2.3 lbs]


Charging cable (splitter cable) Length 1 m  [39.4”]

USB cable Length 1.8 m  [70.8”]

Brackets etc.

Shaft brackets Type: V-fixture for chain, width 18 mm  [0.7”].

Shaft diameters: 20–450 mm  [0.8”–17.7”]

Material: anodised aluminium

Rods Length: 120 mm, 60 mm  [4.72”, 2.36”]  (extendable)

Material: Stainless steel

EasyLink™ Data base software

System requirements: Windows® XP, Vista, 7, 8. For the export functions, Excel

2003 or newer must be installed on the PC.

A complete system contains

1 Measuring unit M

1 Measuring unit S

1 Display unit

2 Shaft brackets with chains

2 Extension chains

4 Rods 120 mm  [4.72”]

4 Rods 60 mm  [2.36”]

1 Measuring tape 3 m  [9.8’]

1 USB memory with EasyLink™ PC software

1 USB cable

1 Charger (100–240 V AC)

1 DC split cable for charging

1 DC to USB adapter, for charging

1 Shoulder strap for display unit

1 Quick reference manual

1 CD with documentation

1 Carrying case








A.  Đầu đọc mã vạch
B. Đế từ
C. Bộ cân chỉnh dây đai E180 BTA hoặc E170 BTA
D. đầu đo độ rung E285
E. Magnet bases
F. Offset brackets
