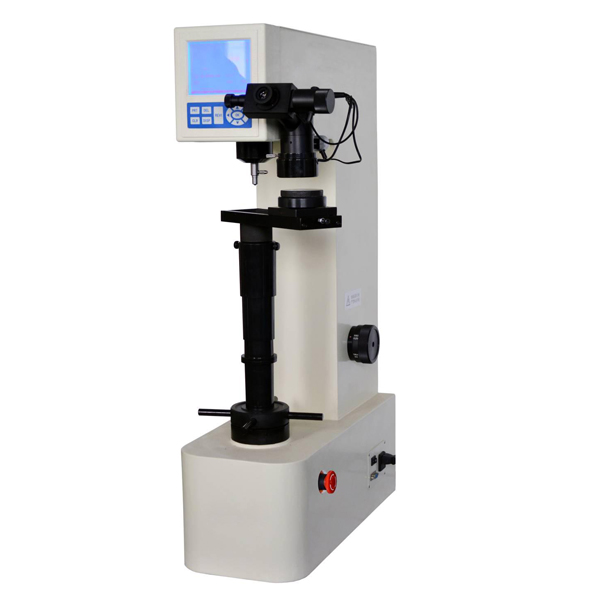

EBP BRV-187.5DH 400mm测试空间通用硬度测试仪

Rockwell Test Force: 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Brinell Test Force: 30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)

Vickers Test Force: 30kgf (294.2N), 100kgf (980.7N)

Indenter: Diamond Rockwell Indenter, Diamond Vickers Indenter, ф1.588mm, ф2.5mm, ф5mmBall Indenter

Loading Method: Automatic (Loading/Dwell/Unloading)

Hardness Reading: LCD Screen Display

Test Scale: HRA, HRB, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100

Conversion Scale: HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW

Magnification: Brinell: 37.5×, Vickers: 75×

Resolution: Rockwell: 0.1HR, Brinell: 0.5μm, Vickers: 0.25μm

Dwell Time: 0~60s

Data Output: Built-in Printer,RS232 Interface

Max. Height of Specimen: Rockwell: 400mm, Brinell: 330mm, Vickers: 345mm

Throat: 165mm

Power Supply: AC220V,50Hz

Execute Standard: ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2 ISO 6506,ASTM E10-12,JIS Z2243,GB/T 231.2 ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2

Dimension: 500×225×880mm,Packing Dimension: 650×370×1140mm

Weight: Net Weight: 100kg,Gross Weight: 120kg


Packing List:

Instrument Main Body 1 set

Diamond Rockwell Indenter 1 pc

Diamond Vickers Indenter 1 pc

ф1.588mm, ф2.5mm, ф5mmBall Indenter each 1 pc

Slipped Test Table 1 pc

Middle Plane Test Table 1 pc

Large Plane Test Table 1 pc

V-shaped Test Table 1 pc

15× Digital Measuring Eyepiece 1 pc

2.5×, 5× Objective each 1 pc

Microscope System (include the inside light and outside light) 1 set

Hardness Block 150~250 HBW 2.5/187.5 1 pc

Hardness Block 60~70 HRC 1 pc

Hardness Block 20~30 HRC 1 pc

Hardness Block 80~100 HRB 1 pc

Hardness Block 700~800 HV30 1 pc

Weights 0, 1, 2, 3, 4 5 pcs

Power Cable 1 pc

Fuse 2A 2 pcs

Horizontal Regulating Screw 4 pcs

Level 1 pc

Spanner 1 pc

Screw Driver 1 pc

Anti-dust Cover 1 pc

Usage Instruction Manual 1 copy
