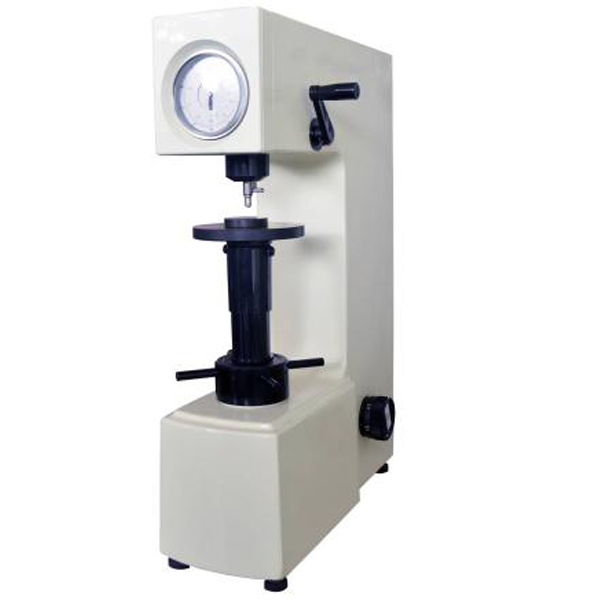

EBP RSR-45 / 150M手动洛氏硬度计和表面洛氏硬度计

  • 制造商: EBP
    Model: RSR-45/150M
    来源: China
    保障: 12 month
    • 报价要求 报价要求
  • 联系
  • 价格合理详情请致电

    热线:   (+84) 966520220

    电话:  +84 (24) 62923267




  • 质量承诺
  • 正品保修
  • 送货到家
  • 交易简单化

Manufacturer: EBP

Model: RSR-45/150M

Origin: China

Warranty: 12 months


Initial Test Force: 3kgf (29.42N), 10kgf (98.07N)

Total Test Force: 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter: Diamond Rockwell Indenter, ф1.588mmBall Indenter

Loading Method: Manual

Hardness Reading: Dial

Resolution: 0.5HR

Max. Height: 175mm

Throat depth: 165mm

Execute Standard: ISO 6508,ASTM E-18,JIS Z2245,GB/T 230.2

Dimension: 520×255×700mm,Packing Dimension: 650×370×950mm

Weight: Net Weight: 80kg,Gross Weight: 100kg


Packing List:

Instrument Main Body 1 set

Diamond Rockwell Indenter 1 pc

ф1.588mmBall Indenter 1 pc

Middle Plane Test Table 1 pc

Large Plane Test Table 1 pc

V-shaped Test Table 1 pc

Hardness Block 60~70 HRC 1 pc

Hardness Block 20~30 HRC 1 pc

Hardness Block 80~100 HRB 1 pc

Hardness Block 70~85 HR30T 1 pc

Hardness Block 65~80 HR30N 1 pc

Weight 1, 2, 3, 4, 5 5 pcs

Level 1 pc

Horizontal Regulating Screw 4 pcs

Inner Hexagon Spanner 1 pc

Spanner 1 pc

Anti-dust Cover 1 pc

Usage Instruction Manual 1 copy
