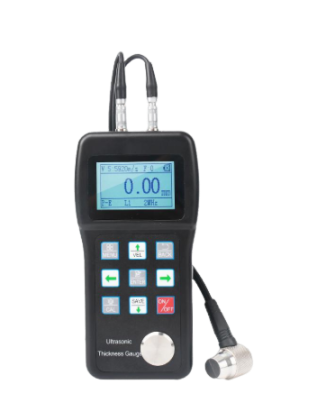

EBP UT-4 涂层便携式超声波测厚仪 ((0.75-600)mm(Steel), (Through Coating): 3-25mm)
制造商: EBP Model: UT-4 - 报价要求
- 联系
Measuring range: (0.75-600)mm(Steel), Measuring Range (Through Coating): 3-25mm
Velocity Range: 1000-9999m/s
Resolution: 0.01mm
Measuring accuracy: ± (0.5%H+0.04mm); H is thickness value
Measurement cycle: Single point measurement 6 times/per
Calibration Function: Zero calibration and two-point calibration
Alarm: Sound-light alarm function
Lower limit for steel pipes
5MHz probe: 20mm*3.0mm (0.8 0.12 inch)
7MHz probe: 15mm*2.0mm (0.6 0.08 inch)
Display: 128 x 64 LCD with LED backlight, color screen
Storage: 40 values of saved data
Communication interface: USB
Language: English and Chinese
Power Source: 2pcs 1.5V AA battery
Working Time: more than 50 hours (LED backlight off)
Work environment: -20℃ to 50℃; Humidity ≤90%
Storage Temperature: -30℃ to +70℃
Dimensions & N/W: 145mmx74mmx32 mm; 245g
Standard Configuration
Main Body: 1 set
Standard Probe (5MHz,D10mm): 1 pc
Couplant: 1 pc
ABS Case: 1 pc
Product Certificate: 1 pc
Warranty Card: 1 pc
Manual: 1 pc
1.5V AA size: 2 pcs
