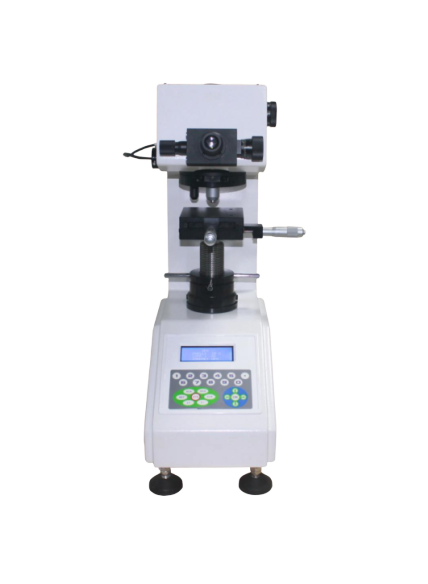

EBP V-1M 手动自动转塔显微硬度计 (8HV-2900HV; Turret thủ công)
制造商: EBP Model: V-1M 来源: China 保障: 12 Month - 报价要求
- 联系
Turret: Manual Turret
Testing force:
10g (0.098N), 25g (0.245N), 50g (0.49N), 100g (0.98N ), 200g (1.96N),
300g (2.94N), 500g (4.9N), 1000g (9.8N) Test force error: ± 1.0%
Hardness scale: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Indenter: Standard Rectangular pyramid diamond indenter (136º± 0.5º)
Min. measuring unit: 0.5μm
Hardness value rang: 8HV-2900HV
Data display: Digital LCD Screen
Total magnification: 100X (For Observation) , 400X (For Measurement)
Loading method: Automatically (Load, dwell and unload the testing force)
Duration time: 1-60s (each step is 1 second)
Test space: Maximum height: 85mm (vertical); Throat depth: 95mm (horizontal)
X-Y Testing Table:
Dim.:100×100 mm, Max. Travel Range: 25×25mm, Moving Resolution Ratio: 0.01mm
Executed Standard: GB/T4340, ASTM E384 & E92, EN-ISO 6507, JIS B-7734
