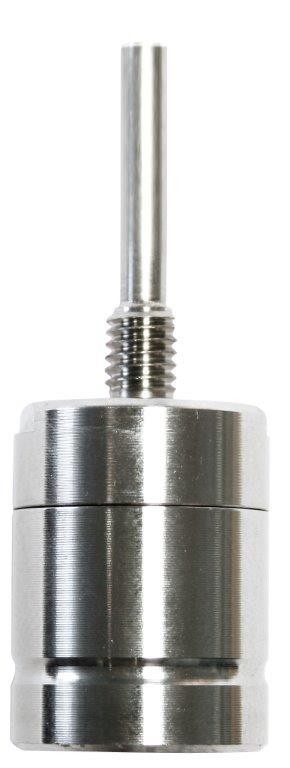

EBRO EBI 11-T235 温度数据输入器(-30°C ... + 150°C,±0.1°C)

Manufacturer: EBRO

Model: EBI 11-T235

Part No.: 1340-6270

Origin: Germany

Warranty: 12 months



Product Description

• Temperature monitoring under cramped conditions

• High accuracy

• Completely waterproof

• Temperature resistant up to +150 °C

• Space-saving (small dimensions)

• Field-replaceable battery

• Needle length 25 mm ø 3 mm

Technical Data

Measuring range: -30 °C...+150 °C

Accuracy: ±0.1 °C

Resolution: 0.01 °C

Operating Temperature: -30 °C...+150 °C

Storage temperature: 0 °C...+60 °C

Memory: 15.000 measurement value

Sensor: Pt 1000

Sample Rate: 1s...24h

Measured variables: temperature

IP Rating: IP68

Battery Battery: 2 x 3 V

Dimensions: ø 16.5 x 24 mm (without probe)

Weight: approx. 45 g

Certificate: Factory calibration certificate

Options

- AL 114: Adapter Set for EBI-11; Part No. 1340-6298

- Interface Set SI 1300; 4 fold Interface IF 300 for EBI 11; Part No. 1340-6063

- Interface Set SI 2100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6064

- AL 115: Bottle Adapter-Set for EBI-11; Part No. 1340-6299

- AL 113: Battery Exchange Set for EBI 11; Part No. 1100-0120

- AL 285 Logger Check; Part No. 1248-0285

- Interface Set SI 3300: 4 fold Interface IF 300 for EBI 11; Part No. 1340-6069

-Interface Set SI 1100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6061

Software

Winlog.pro Software-; Part No. 1340-2355

Winlog.validation Software; Part No. 1340-2394

Winlog.med Software: Software (Standard-Software for the CSSD); Part No. 1340-2363

Detail

Datasheet


Brochure


Manual
