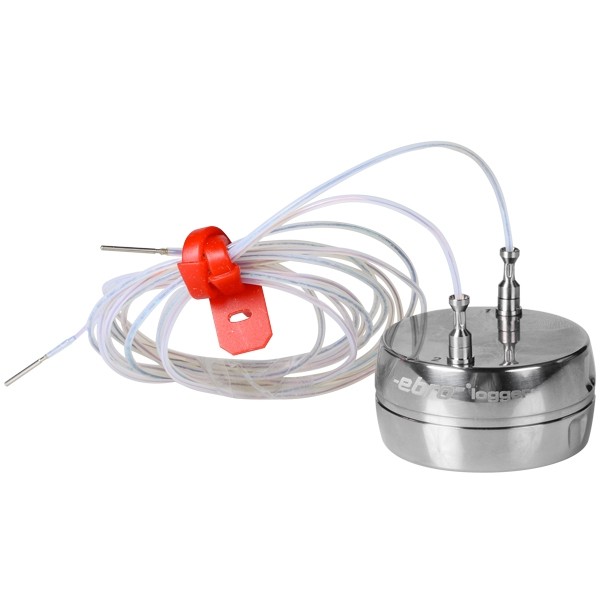

EBRO EBI 12-T471 无线温度数据记录器(-20°C…+150°C,0.01°C)

Manufacturer: EBRO

Model: EBI 12-T471

Part No.: 1340-6644

Origin: Germany

Warranty: 12 months


Product Description

Process monitoring, F-value and A0 value calculation.

• Best of small steam sterilizers

• With wire probe

• According ISO EN 17665, EN 285, pr DIN

  58929 / DIN EN 13060 and ISO 15883

• Needle length 1200 mm, ø 1,2 mm


Measuring range: -20 °C … +150 °C

Accuracy: ± 0,2 °C (-20 °C … 0 °C) ± 0,1 °C (0 °C ... +120 °C) ± 0,05 °C (+120 °C … +140 °C) ± 0,1 °C (+140 °C … +150 °C)

Resolution: 0,01 °C

Operating Temperature: -20 °C … +150 °C

Storage temperature: 0 °C ... +125 °C

Memory: 2 x 50,000measurement values

Sensor: Pt 1000, class A

Sample Rate: 250 msec ... 24 h

Measured variables: Temperature

IP Rating: IP68

Battery: Lithium battery (3,6 V), user replaceable

Dimensions: ø 48 mm x 24 mm

Weight: approx. 110g

Certificate: Factory calibration certificate

Options

- Interface Set SI 2100 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6064

- AL 104: SET pin cho EBI12 + EBI 16; Part No. 1100-0118

- AL 121 dụng cụ mở; Part No. 1100-0131

- AL 285 Logger Check; Part No. 1248-0285

- Interface Set SI 1100: 2-fold Interface IF 100 for EBI 12, EBI 10, EBI 100 and EBI 11; Part No. 1340-6061

- Interface Set SI 3200 4 fold Interface IF 200 for EBI 12, EBI 10 and EBI 100; Part No. 1340-6068

- Interface Set SI 1200, 4-fold Interface IF 200 for EBI 12, EBI 10 and EBI 100; Part No. 1340-6062

Software

Winlog.validation Software; Part No. 1340-2394
