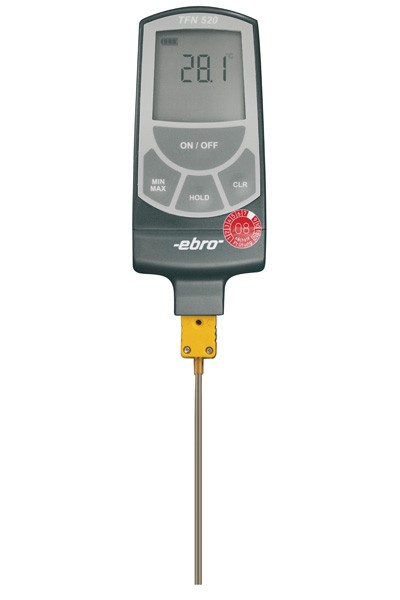

EBRO TFN 520-SMP 温度计(1340-5522)(SMP,1200°C)

Heating technology

Climate, air-conditioning, gases

Liquids, surface temperature

Tooling for injection moulding

Plastics

Laboratories


Measuring range: Typ K -200 °C to +1200 °C Typ J -100 °C to +800 °C Typ T -50 °C to +300 °C Typ E -100 ° C to +600 °C

Accuracy: Accuracy @ 25 °C Type K -100 °C to +249.9 °C ±0.3 °C Type J -50 °C to +190 °C ±0.3 °C Type T -50 °C to +220 °C ±0.3 °C Type E -50 °C to +150 °C ±0.3 °C rest of range 0.5% of reading

Resolution: Type K 0.1 °C at -200 °C to +250 °C Type J 0.1 °C at -100 °C to +190 °C Type T 0.1 °C at -50 °C to +220 °C Type E 0.1 °C at -100 °C to +150 °C 1 °C for the rest

Sensor extern; Thermoelement Typ K, J, T, E

Operating Temperature: -5 °C...+50 °C

Storage temperature: -25 °C...+60 °C

Sample Rate: 0,5s-15s

Probe: SMP

Measured variables: temperature

IP Rating: IP40

Battery lifetime: approx. 3 years

Dimensions: 115 x 54 x 22 mm

Weight: approx. 90g

Certificate: Factory calibration certificate
