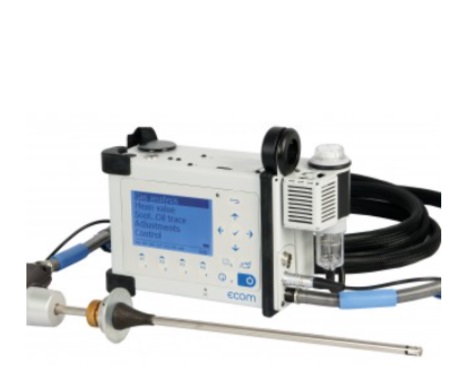

Ecom ecom-D 排放分析仪 (32-1832 F, ± 0.5%)

- Measurements:

+ Oxygen (O2):

Range: 0-21% vol

Accuracy: ± 0.2% vol

Resolution: 0.1% vol

+ Carbon Monoxide (CO):

Range: 0-10000 ppm

Accuracy: ±2%

Resolution: 1 ppm

+ Nitric Oxide (NO):

Range: 0-5000 ppm

Accuracy: ±5%

Resolution: 1 ppm

+ Nitrogen Dioxide (NO2)

Range: 0-1,000 ppm

Accuracy: ± 5%

Resolution: 1 ppm

+ Sulfur Dioxide (SO2):

Range: 0-5000 ppm

Accuracy: ± 5%

Resolution: 1 ppm

+ Hydrogen Sulfide (H2S):

Range: 0-1000 ppm

Accuracy: ± 5%

Resolution: 1 ppm

+ Carbon Dioxide (CO2):

Range: 0-20% vol

Accuracy: ± 5%

Resolution: 0.1% vol

+ Methane (CH4):

Range: 0-5% vol

Accuracy: ± 5%

Resolution: 0.01% vol

+ Combustibles (CxHy): 0.01% vol

+ Gas Temperature:

Range: 32-1832° F**

Accuracy: ±0.5%

+ Ambient Temperature:

Range: 40-122° F

Accuracy: ±1° F

Resolution: 1° F

+ Draft / Pressure:

Range: ±40” H2O

Accuracy: ±2%

Resolution: 0.004” H2O

+ O2 Correction: 0-20% O2

+ Carbon Dioxide: 0-CO2 max

- Electrical:

+ Battery life: 3-5 hour, 6V 3.3Ah Li-ion

+ Pump: Flow rate of 0.8 - 1.0 lpm

- Dimensions: 7.25” x 3.0” x 5.0”

Weight: 3.5 lbs
