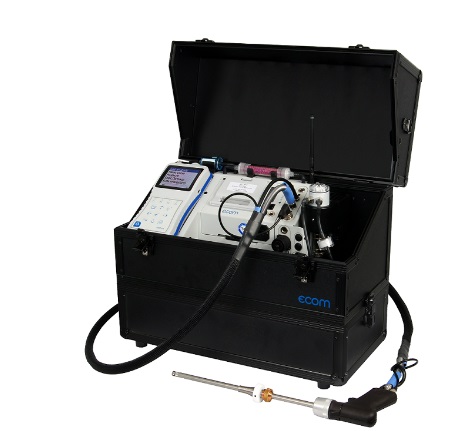

Ecom ecom-J2KNpro EXPERT 排放分析仪 (17,5 X 9,75 X 12 inch, 29 lbs)

- Measurements:

+ Oxygen (O2):

Range: 0-21% vol

Accuracy: ± 0.2% vol

Resolution: 0.1% vol

+ Carbon Monoxide (CO):

Range: 0-10,000 ppm

Accuracy: ± 2%

Resolution: 1.0 ppm

+ Nitric Oxide (NO):

Range: 0-5000 ppm

Accuracy: ± 5%

Resolution: 1.0 ppm

+ Nitrogen Dioxide (NO2):

Range: 0-1000 ppm

Accuracy: ± 5%

Resolution: 1.0 ppm

+ Sulfur Dioxide (SO2):

Range: 0-5000 ppm

Accuracy: ± 5%

Resolution: 1.0 ppm

+ Combustibles (CxHy):

Range: 0-4.00% vol

Resolution: 0.01% vol

+ Methane (CH4):

Range: 0-3.00% vol

Accuracy: ± 3%

Resolution: 0.001% vol

+ Carbon Dioxide (CO2):

Range: 0-20%

Accuracy: ± 5%

Resolution: 0.1% vol

+ Draft / Pressure:

Range: ±40” H2O

Accuracy: ± 2%

Resolution: 0.004” H2O

+ Gas Temperature:

Range: 32-1832° F**

Accuracy: ± 0.5%

+ Ambient Temperature:

Range: 40-122° F

Accuracy: ± 1° F

+ O2 Correction:

Range: 0-20% O2

+ Carbon dioxide:

Range: 0-CO2 max of fuel

+ Smoke Scale: 0-9

- Dimension: 17.5 X 9.75 X 12 in

29 lbs weight
